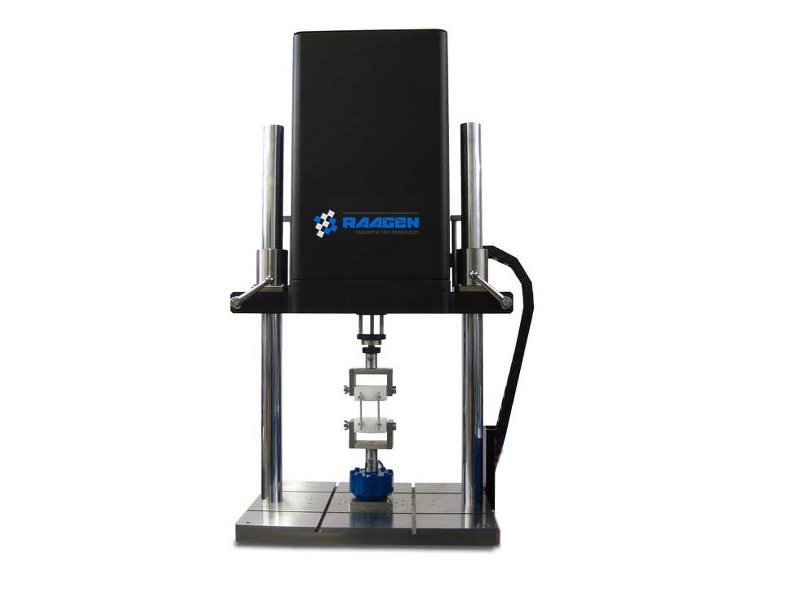

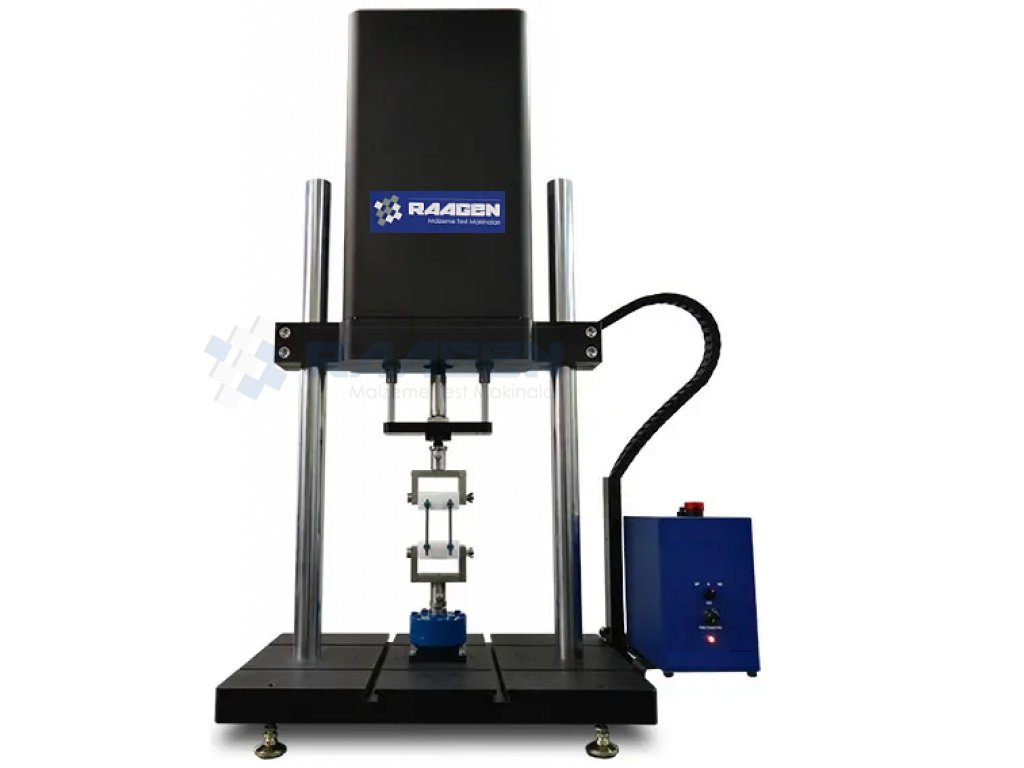

Raagen Electrodynamic Fatigue Test Systems with force capacities up to 40 kN; With their clean and quiet designs, energy efficient electrodynamic fatigue test devices are systems that can be designed to perform tests such as tensile tests, torsion tests, high-frequency fatigue tests, compression tests, bending tests, flexural tests.

Raagen electrodynamic fatigue testing systems are compatible with Raagen accessories and can be configured to suit your different testing needs.

Contact us now to get more detailed information about Raagen Electrodynamic Fatigue Testing Machines or to request a price quote.

Test Samples:

Polymers (elastomers, elastomers, plastics, polymers, rubber), Biomaterials and Medical Devices, Composites (carbon fiber, ceramic matrix, metal matrix, polymer matrix), Ceramics, Packaging Products, Microelectronic Materials



Raagen electrodynamic fatigue testers; Thanks to the DOLI electronic controller, it can automatically recognize and calibrate sensors such as load cells, temperature sensors, LVDTs, strain gauges, I/Os, elongation measurement sensors and vibration sensors. With the software of electrodynamic fatigue testing machines, real-time load, displacement, deformation, time and other parameters defined by the external user can be presented with the test software, viewed graphically and all these data can be transferred to the graphic axes. It has an overload protection system. It has an automatic break detection system. User defined methods can be created. It is possible to create 30 user-defined formulas and/or parameters based on force, displacement and deformation. This number can be increased with additional modules. These parameters are recognized and reported both during the test control and at the end of the test.

They are suitable systems for high frequency and high cycle fatigue tests with different amplitude values ​​at frequencies up to 200 Hz. Our electrodynamic fatigue testers are driven by linear motor technology. Friction, wear, etc. in the system. Since problems will not occur, it can easily perform fatigue tests that take days or even months at high frequencies with the most precision.

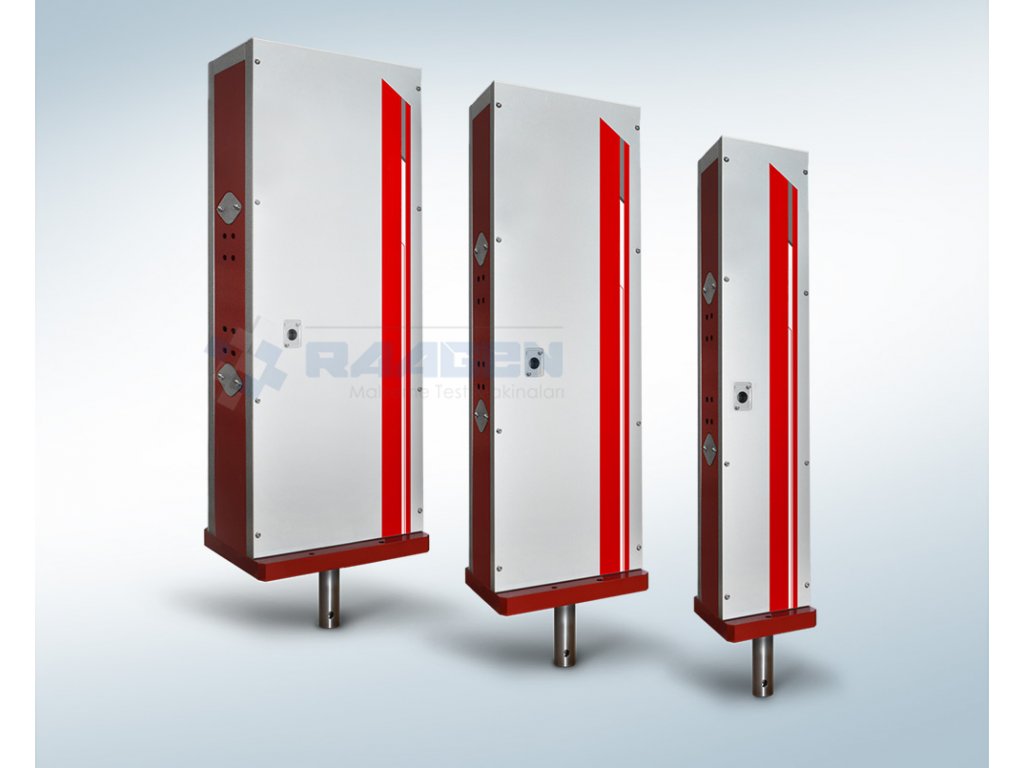

Electrodynamic actuators with linear motors
FOR HIGH DYNAMIC APPLICATIONS WITH EXCEPTIONAL PERFORMANCES
> Frequencies up to 150 Hz in force or displacement control
> Suitable for high dynamic: accelerations up to 10g
> Maximum load up to 40 kN
> Velocity up to 2.0 m/s



ISO 10113, ISO 7206-4, ISO 7206-6, ASTM F543, ISO 14801, ISO 527-3, ASTM D882, ASTM F2077

Raagen Electrodynamic Test Machines Specimen Types
Polymers fatigue tests
Elastomeric Materials fatigue tests
Plastics fatigue tests
Rubber fatigue tests
Biomaterials and Medical Devices fatigue tests
Composites fatigue tests
Carbon fiber fatigue tests
Ceramic matrix fatigue tests
Metal matrix fatigue tests
Polymer matrix fatigue tests
Ceramic fatigue tests
Consumer Products and Packaging fatigue tests
Microelectronic Materials fatigue tests

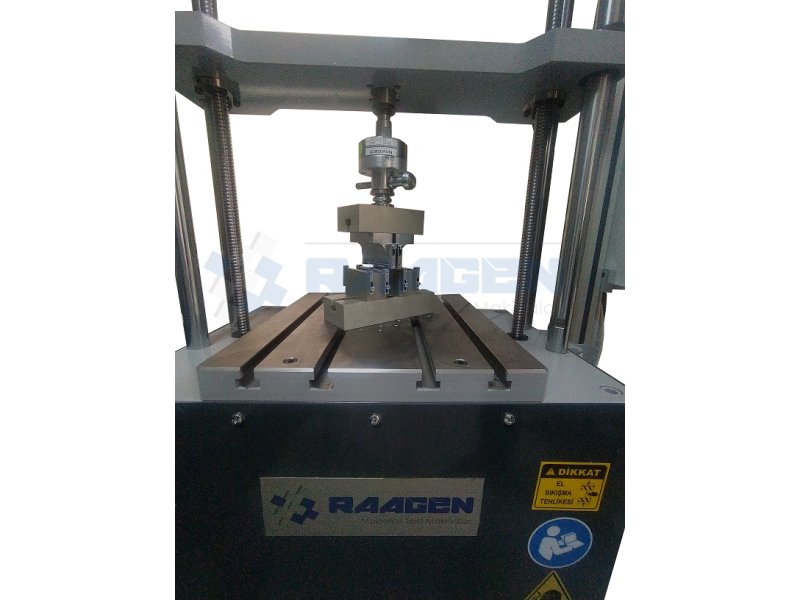

Servo Hydraulic Fatigue Test Machines Grips And Test Fixtures


Raagen has a big engineer team for designin of different test fixtures according     to various test     standards.This team analyse the customer's exact requirement  of required tests. They offer   correct fixture types and dimensions     for customer.Raagen offers different kind of tensile test   fixtures, compression  test plates, flexural and bending test apparatus, shear test fixtures, peeling   tests fixtures, eccentric rollers, chucks, puncture test fixtures, specimen cutters and cutting dies. See more...





Extensometers for Strain Measurement

Raagen offers all type of extensometers to use with electromechanical  test  machines to able to strain measurement of mechanical tests.

 We are supplying of tensile test extensometers, clip on extensometers, compression test deflection gauges, transversal extensometers, video   extensometers, laser extensometers, long travel extensometers and automatic extensometers. See more...

High Temperature Furnaces

Raagen develops, manufactures and supplies high temperature test furnaces for quality assessment in material testing under high  temperature (HT).

Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials.  The furnaces can using with Raagen Electromechanical Test Machines to determine material characterisation of elevated temperatures. See more...







Environmental Chambers for Universal Testing Machines



Raagen environmental test chambers provides extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions. A full range of complementary grips, pullrods and extensometers are available for using inside of environmental test cabinets.

Raagen makes high or low temperature testing is made possible by integrate an climalitical chamber to a universal testing machine.

See more...
