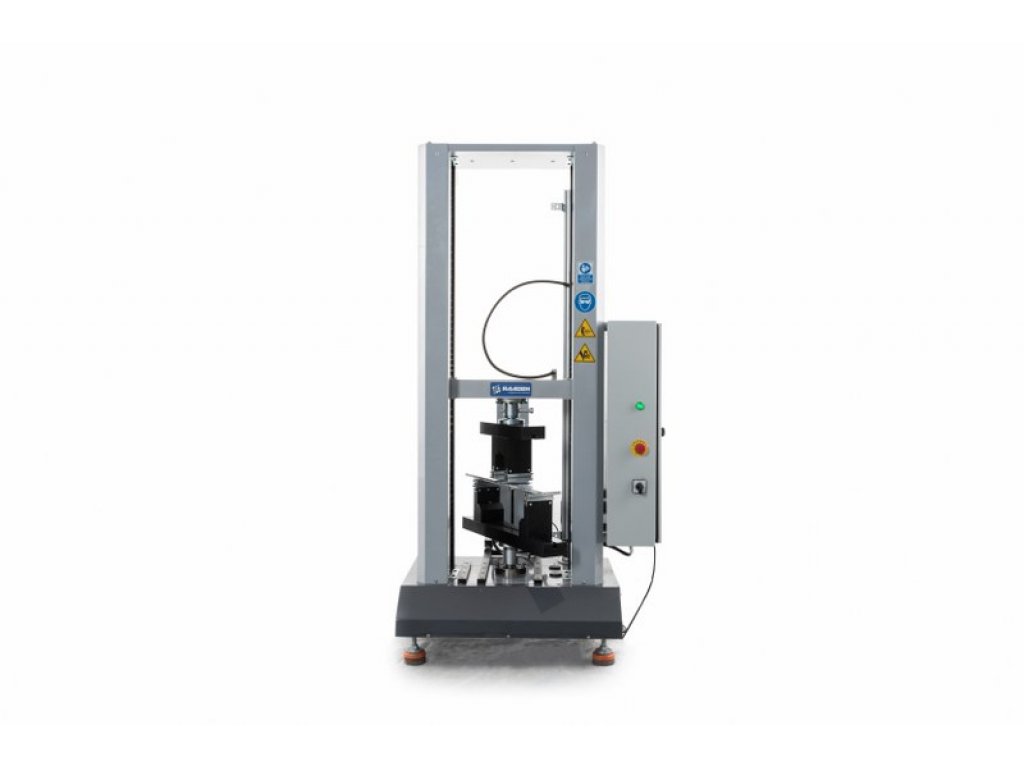

ELECTROMECHANICAL UNIVERSAL TESTING MACHINES

Raagen Electromechanical Universal Test Machines are also described as screw testing machines, static testing systems and monotonic machines; and are the standard for determining basic material properties. Raagen ETM Series Electromechanical Test Machines using for tension tests, compression tests, flexural tests, bending tests, shear tests, tearing tests and other mechanical tests on materials and products to ASTM, ISO, and other industry standards.

Raagen Electromechanical Test Machines are available in a range of sizes and maximum force capacities.

These test systems tests microelectronic materials, biomaterials,  ceramics, textiles, metals, polymers, elastomeric materials, elastomers, plastics, polymers, rubbers, composites up to 2000 kN of force.

Raagen ETM Universal Test Machines with force capacities from 1N to 2000 kN , high-speed, low vibration electromechanical drives and integrated, digital closed-loop controls provide higher accuracy accross test runs. Approved and easy to use, these systems efficiently give reliable exact results. Raagen also offers wide range of accessories to support a wide range of specimens.

Please click here to download full catalogue of Raagen Electromechanical Test Machines.

Available Electromechanical Test Machine series according to force capacities as follow:

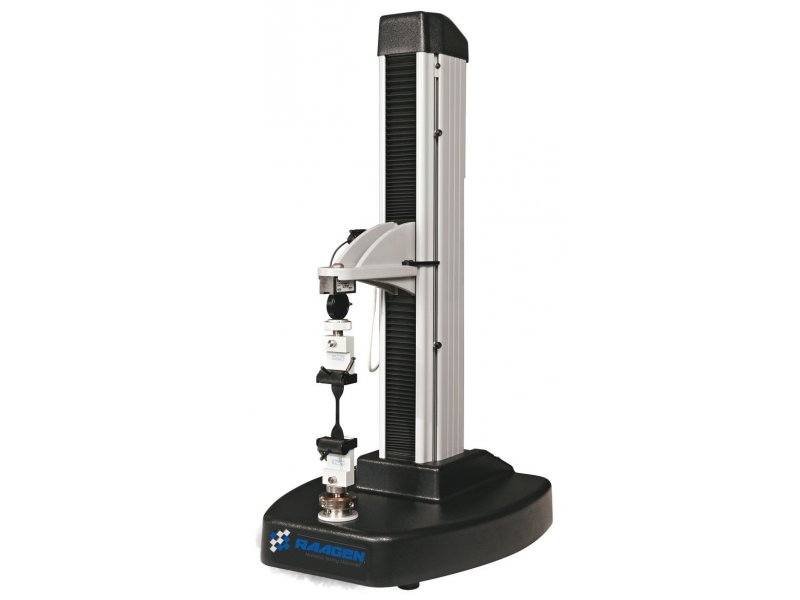

Raagen ETM-SC Series Electromechanical Testing Machines       :  1 N - 5 kN

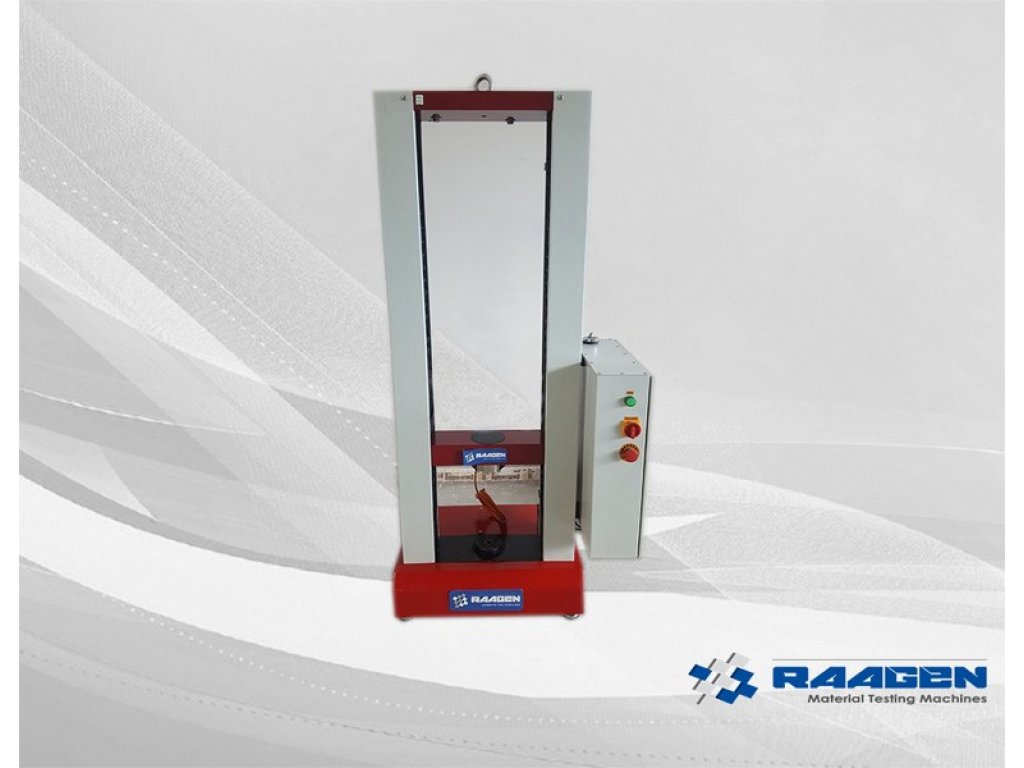

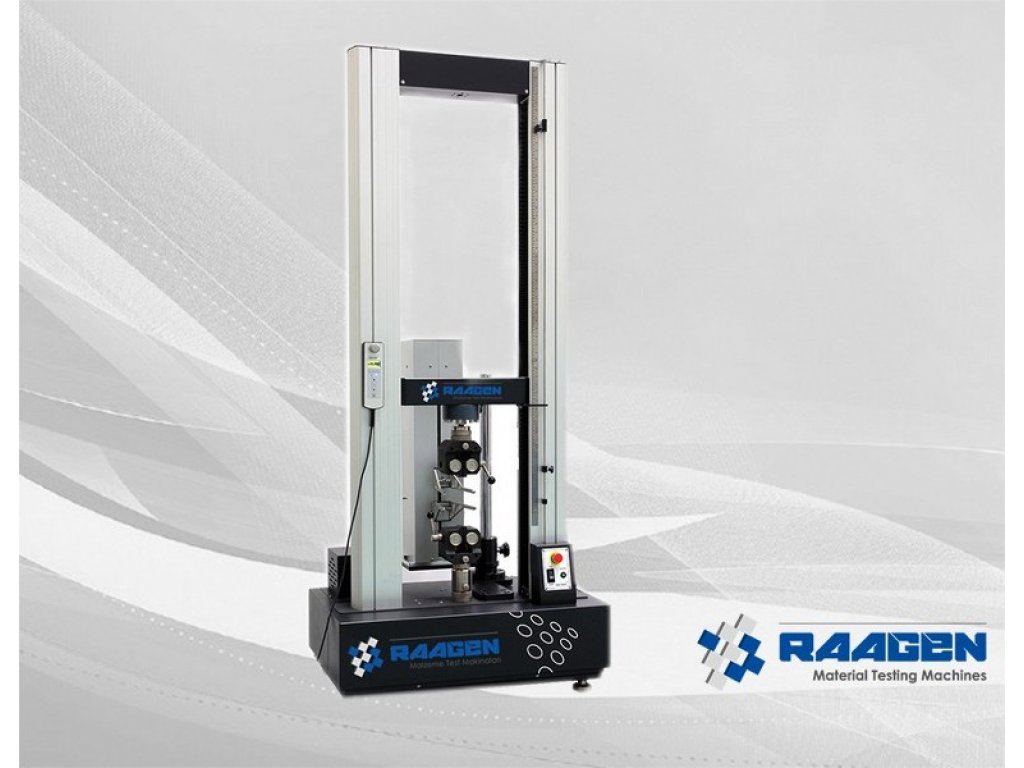

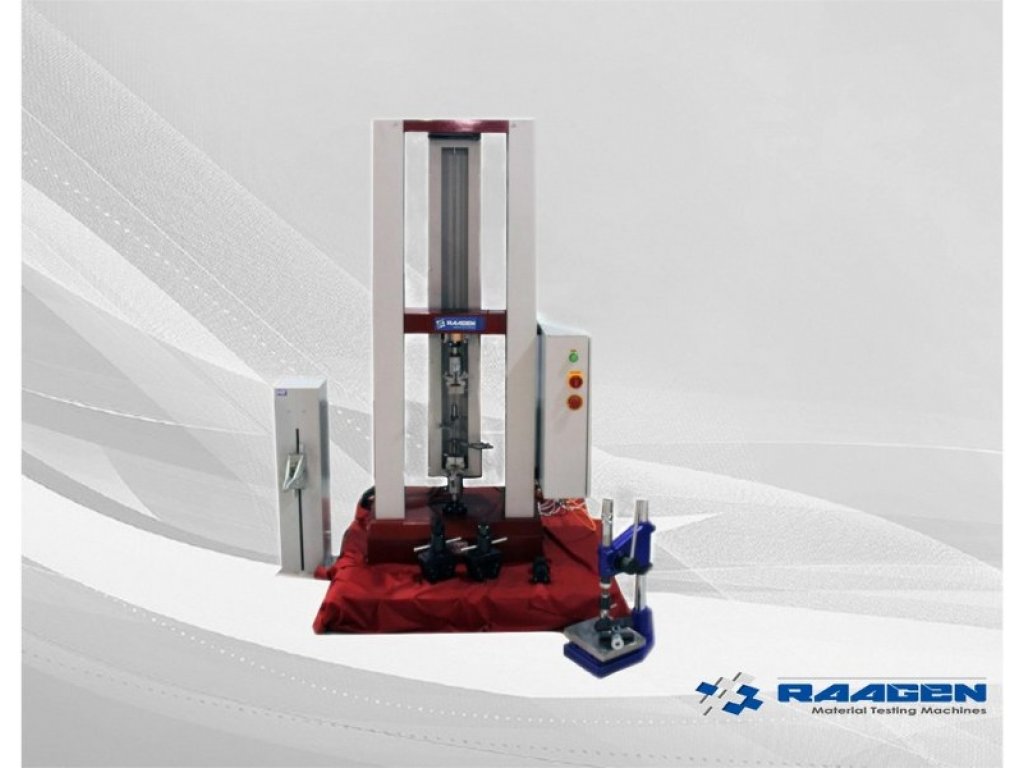

Raagen ETM-L Series Electromechanical Testing Machines            : 100 N - 50 kN

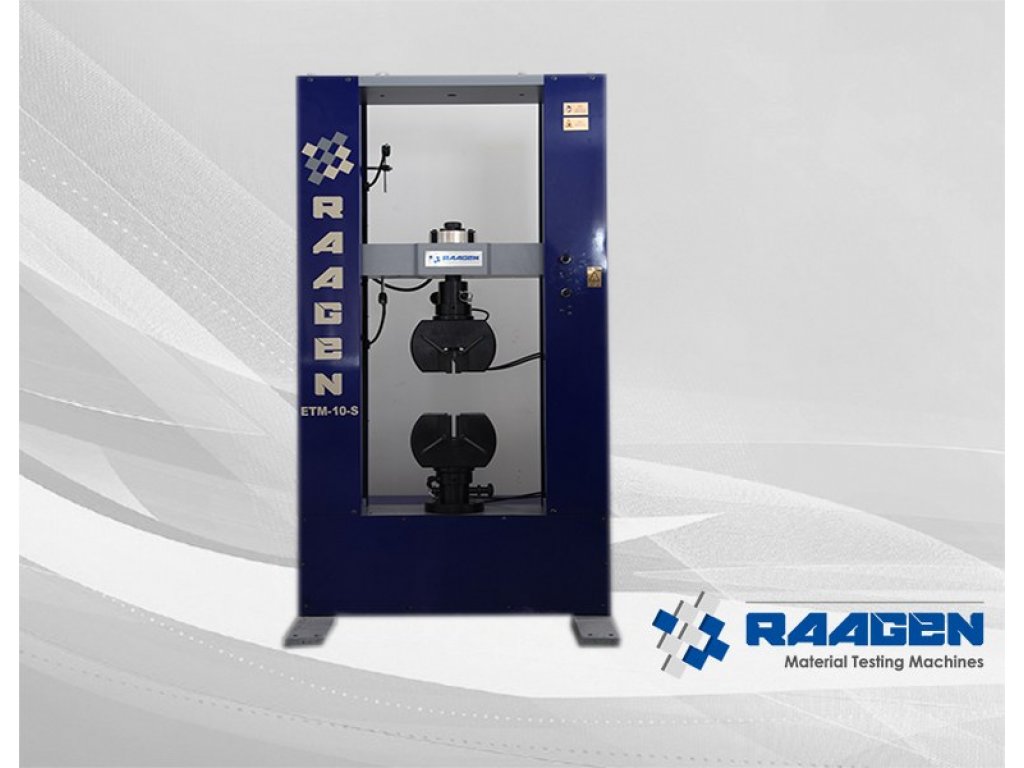

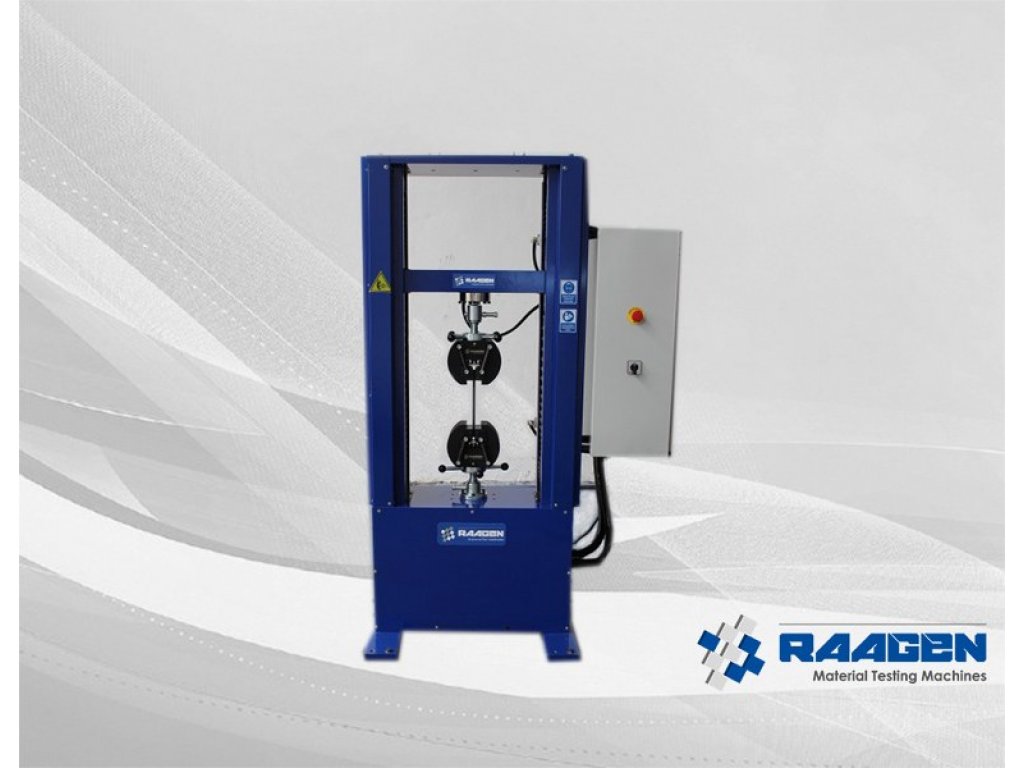

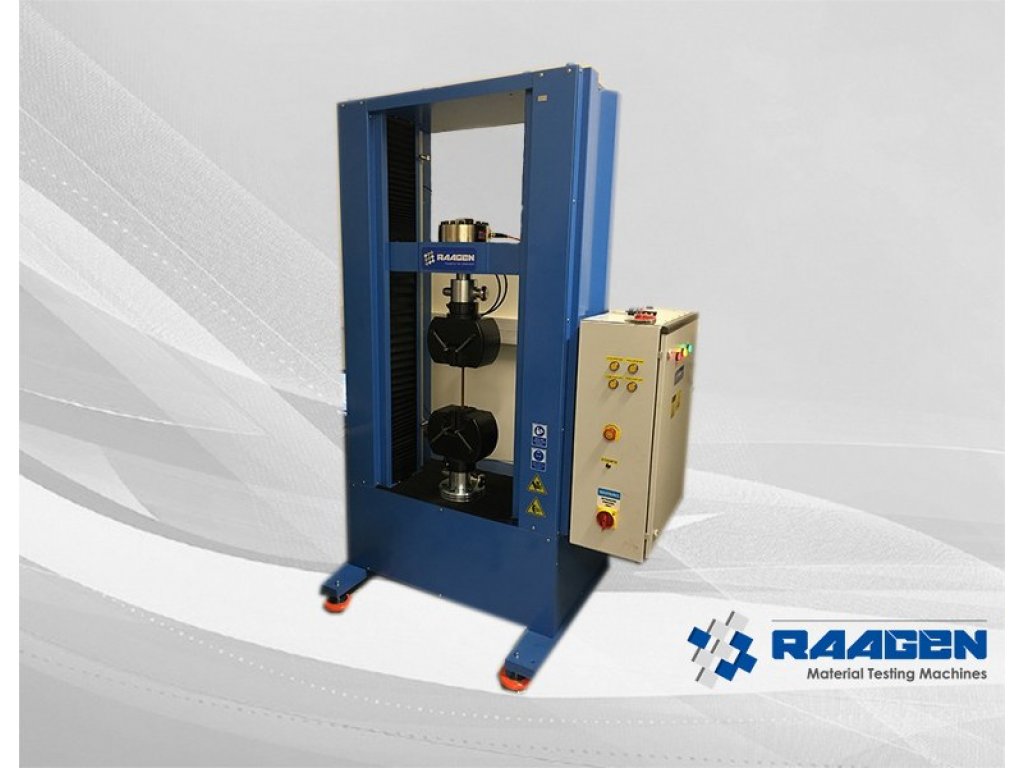

Raagen ETM-S Series Electromechanical Testing Machines           :  100 kN – 200 kN

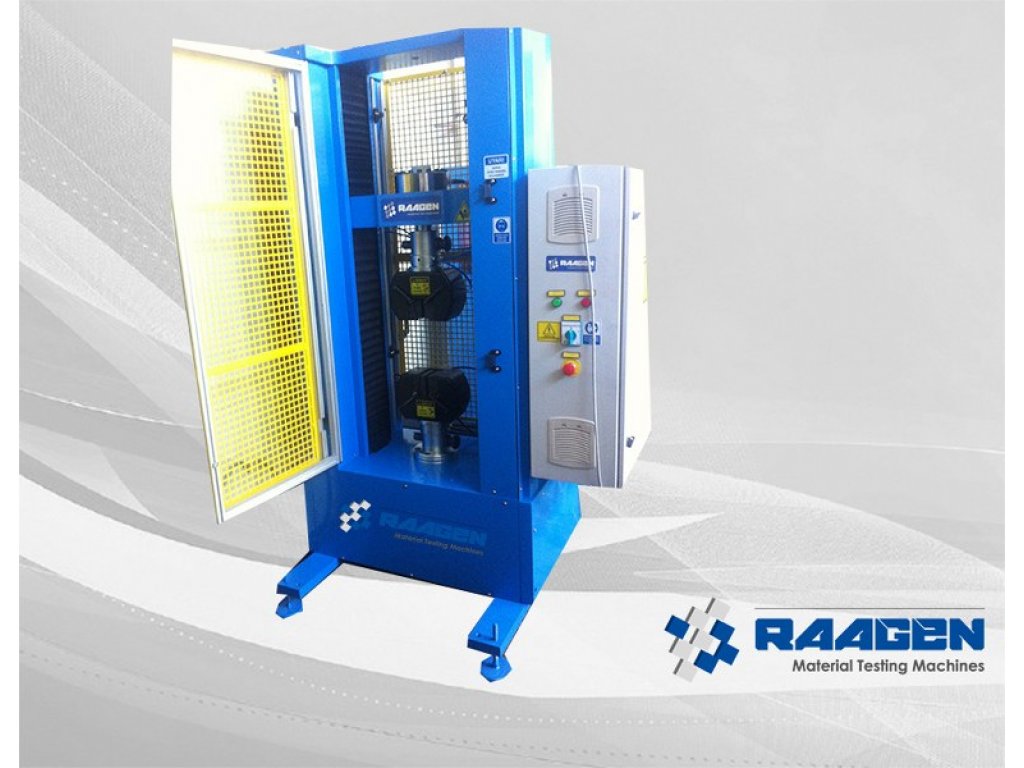

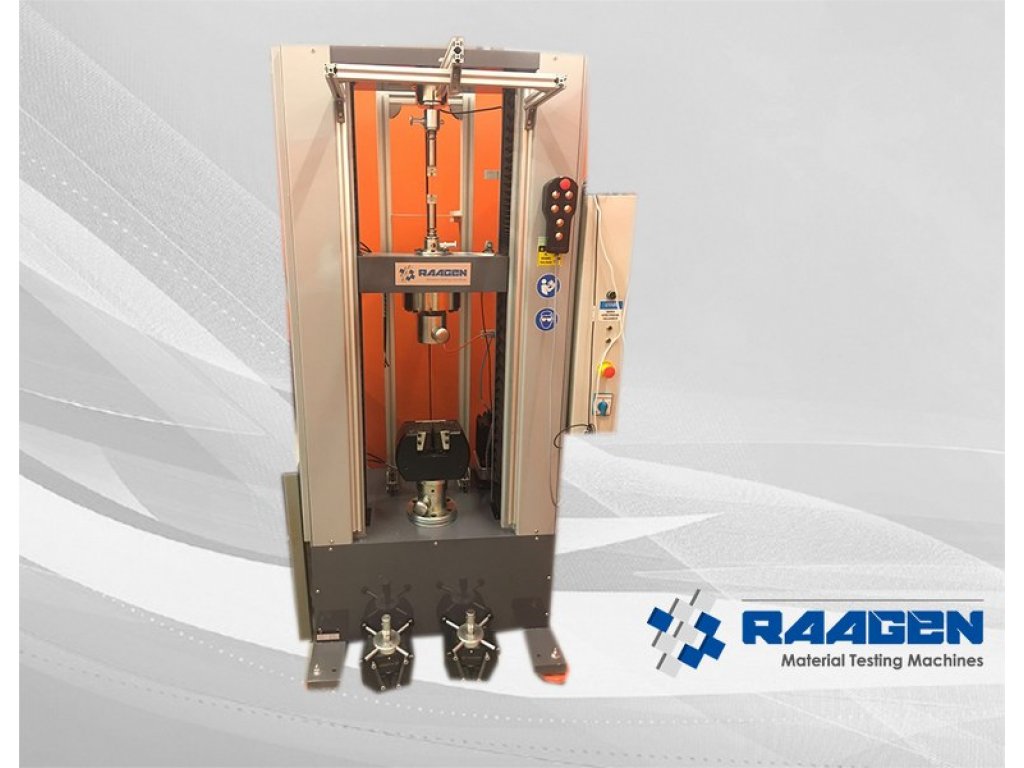

Raagen ETM-S1 Series Electromechanical Testing Machines         :  300 kN – 600 kN

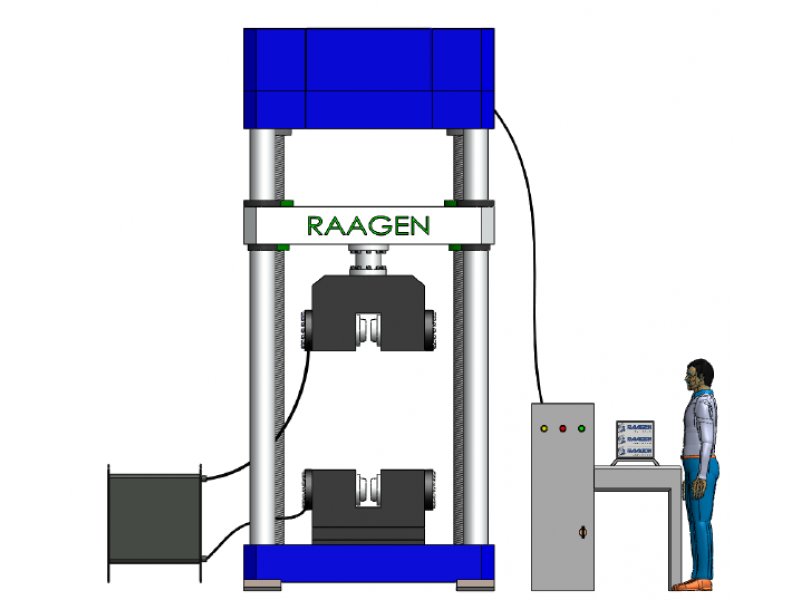

Raagen ETM-Special Series Electromechanical Testing Machines  :  1000 kN – 2500 kN

RAAGEN ELECTROMECHANICAL UNIVERSAL TEST MACHINES SPECIFICATIONS

Low Profile Force Accuracy
(Bending Beam and Shear Beam)

± 0.5% of applied force

± 1.0% of applied force

Low Profile Force Range
(Bending Beam and Shear Beam)

1 to 100% of rated force capacity

0.5 to 1% of force rated capacity

S-Beam Force Accuracy

± 1.0% of applied force

S-Beam Force Range

1 to 100% of rated force capacity

Rated Force Capacity at Max Test Speed

100%

Maximum Test Speed at Rated Force Capacity

100%

Speed Accuracy Set speed

Set speed < 0.01mm/min:
speed accuracy is within ± 1.0% of set speed
Set speed ≥ 0.01mm/min:
speed accuracy is within ± 0.5% of set speed

Position Accuracy

within ± 0.5%

Strain Accuracy

± 0.5% of applied strain (depending on extensometer model)

Security Protection

Over-force, travel limits, over-voltage and others

Over-Force Protection

110%

Data Acquisition Rate

Up to 10000Hz (depending on controller type)

Control Loop Rate

Up to 10000Hz (depending on controller type)

Environmental Requirements

Operating Temperature

5 to 40°C

Operating Humidity

5 to 85% Non-condensing

Storage Temperature

-18 to 49°C

Maximum Storage Humidity

90% Non-condensing

Maximum Altitude

2000 Meters

Motor & Drive System

AC Servo Motor

Ballscrews

Pre-Loaded

Position Measurement

Encoder

User Digital Inputs/Outputs

4 user Digital Inputs and 4 user Digital Outputs (Optionally, can be added more)



Model

ETM-SC

ETM-L

ETM-S

ETM-S1

ETM-Special

Maximum Rated Force Capacity (kN)

5

50

200

600

2500

Force Capacity Options (N, kN)

1N, 5 N, 25 N, 50 N, 100 N, 250 N, 500 N, 1 kN, 2 kN, 5 kN

100N, 250N, 500N, 1kN, 2.5 kN, 5 kN, 10 kN, 20kN, 30kN, 50kN

100 kN, 150 kN, 200 kN

300 kN, 400 kN, 500 kN, 600 kN

1000 kN, 1200 kN, 1600 kN, 2000 kN, 2500 kN

Frame Type

Single Clumn, Table Top

Double Columns,
Table Top

Double Columns,
Table Top or Floor Standing

Double Columns,
Table Top or Floor Standing

Double Columns,
Table Top or Floor Standing

Test Zones

Single

Single or Dual

Single or Dual

Single or Dual

Single or Dual

Maximum Test Speed (mm/min)

max 3000 (depend on order)

10 kN : max 2000
30 kN : max 1000
50 kN: max 750

max 750  (depend on ordered configuration)

max 254  (depend on ordered configuration)

max 150  (depend on ordered configuration)

Minimum Test Speed mm/min

0,005

0,005

0,005

0,005

0,005

Position Resolution mm

0,00005









Power Requirements

200 - 230 V AC
5 Amps
50 / 60 Hz,

200 - 230 V AC
5 Amps
50 / 60 Hz,

200 - 230 V AC
5 Amps
50 / 60 Hz,

380 - 480 V AC
20 Amps
50 / 60 Hz

380 - 480 V AC
20 Amps
50 / 60 Hz

Space Between Columns (mm)

100 (space between grip center and column cover)

425

Between 400 -600 (depend on ordered configuration)

Between 600 - 750 (depend on ordered configuration)

Between 600 - 750 (depend on ordered configuration)

Vertical Test Space (mm)

1100

1000-1200

1000-1200

1000-1540

1000-2000

Crosshead Travel (mm)

900

1000

1000

1000

1000 - 1750

Frame Height (mm)

1520

1600 - 1950

1601 - 1950

2500 - 3490

3490 - 4300

Frame Width (mm)

510-730

790-830

1114-1320

1660

1710-2000

Frame Depth (mm)

230-600

650-840

650-841

1100-1270

1600

Frame Weight (kg)

60-110

440-960

1000-1660

3500

6200-125.60

  • ISO 6892-1 Tensile Testing Metallic Materials at Room Temperature

  • ASTM C158 Flexural Bend Testing for Glass
  • ASTM C165 Compressive Test of Thermal Insulations
  • ASTM D624 Tear Testing for Rubber and Elastomers
  • ASTM D638 Tension Testing for Plastics
  • ASTM D1002 Lap Shear Testing for Adhesively Bonded Metals
  • ASTM D2979 Tack Adhesive Testing Machine
  • ASTM D3330 - Peel Adhesion Pressure Sensitive Adhesive Tapes
  • ASTM D3574 Testing Equipment for Flexible Cellular Urethane Foams
  • ASTM D6862 90 Degree Peel Resistance Test Equipment for Adhesives
  • ASTM D412 - Tension Testing for Rubber and Elastomers
  • ASTM D624 - Tear Strength of Conventional Vulcanized Rubber and Thermoplastic Elastomers
  • ASTM D638 Tension Testing for Plastics
  • ASTM D790 Testing for Flexural Properties of Plastics and Insulating Materials
  • ASTM D882 - Tensile Testing Thin Plastic Sheeting
  • ASTM F88 Seal Strength Testing Equipment for Flexible Barrier Materials
  • ISO 37 Tensile Rubber Test Equipment
  • ISO 10555 Tensile Testing of Sterile Single Use Intravascular Catheters
  • EN 10002,  ASTM E8, DIN 50145, DIN 50114, DIN 50140 DIN 51210 test machine

  • ISO 10275, ISO 783, EN 10080, BS 4449, BS 4482, EC2, ISO 898-1, ASTM F606, EN 12390-3, EN196-1, EN ISO 7438, ASTM A615-85, A615M-89, EN 12390-5, EN 196-1, DIN 50141 test machine

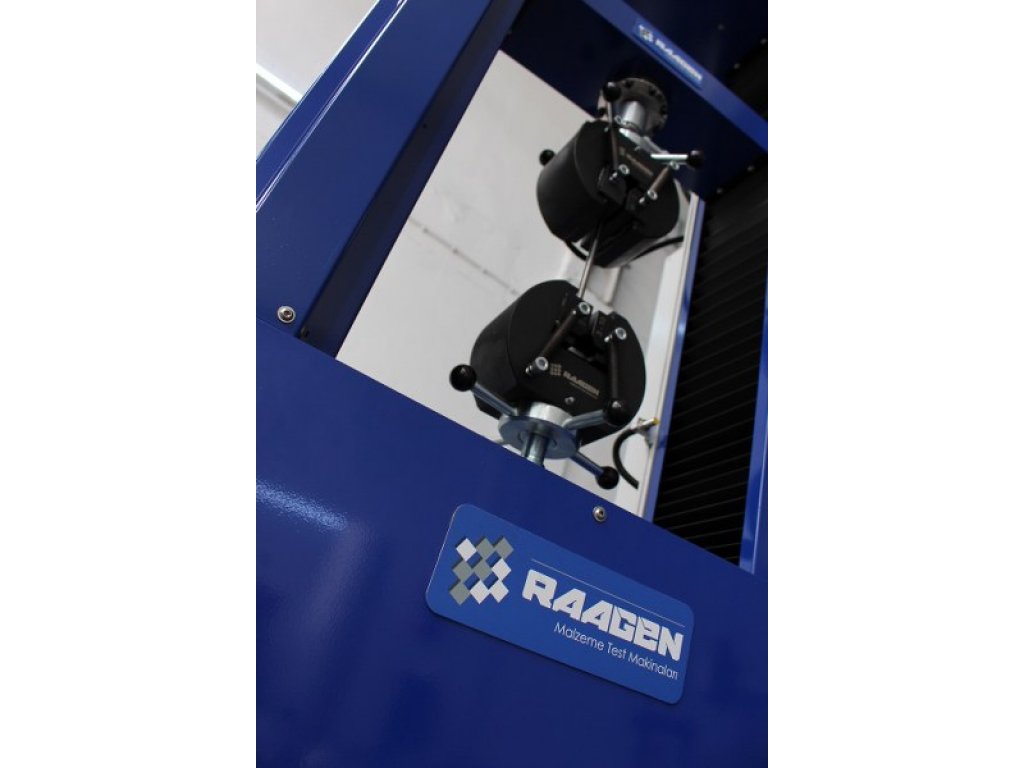

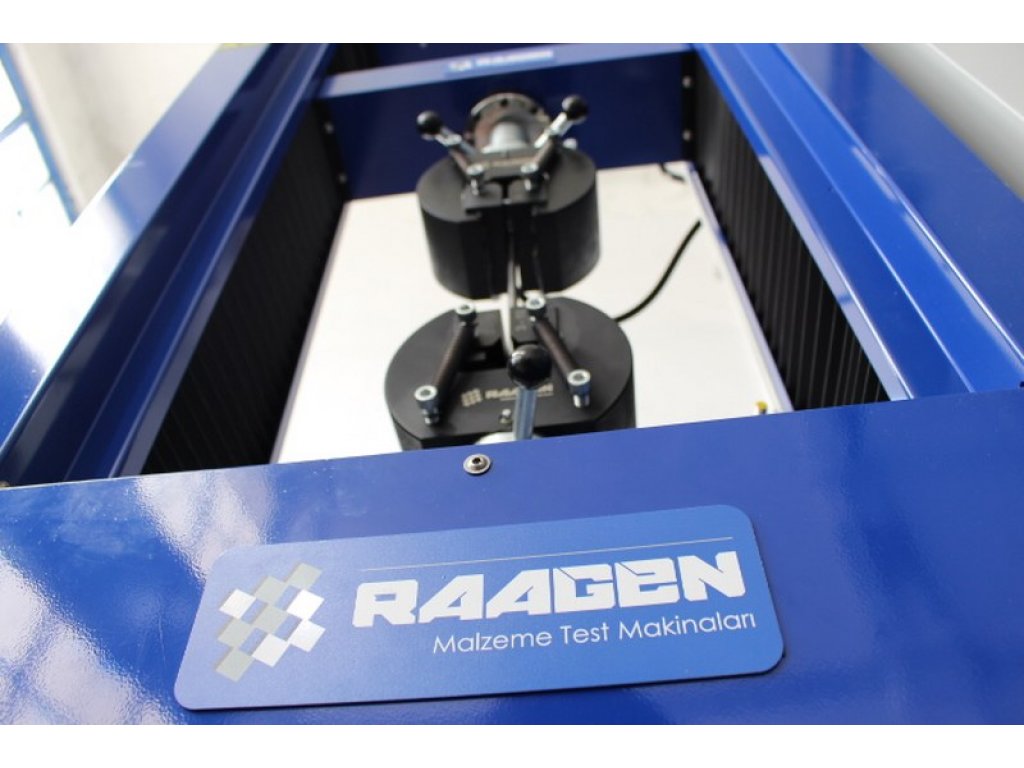

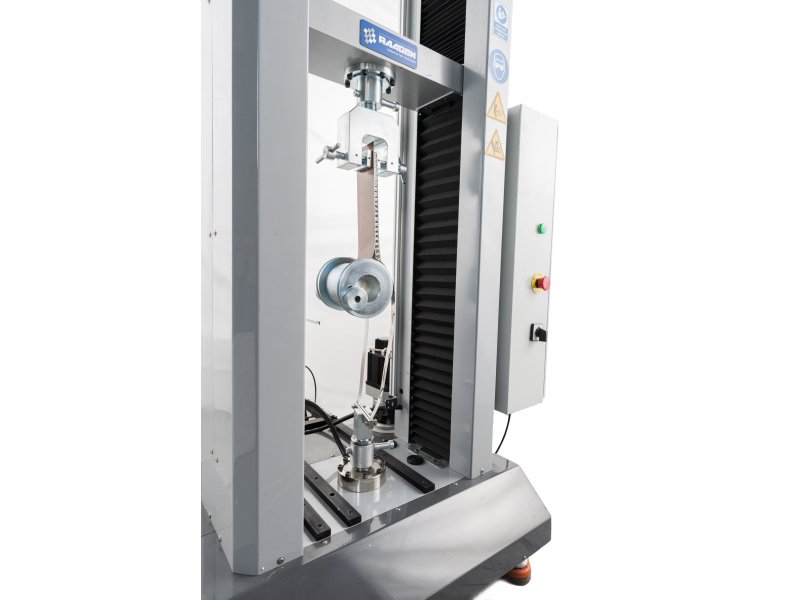

Electromechanic Test Machines Grips And Test Fixtures



Raagen has a big engineer team for designin of different test fixtures according     to various test     standards.This team analyse the customer's exact requirement  of required tests. They offer   correct fixture types and dimensions     for customer.Raagen offers different kind of tensile test   fixtures, compression  test plates, flexural and bending test apparatus, shear test fixtures, peeling   tests fixtures, eccentric rollers, chucks, puncture test fixtures, specimen cutters and cutting dies. See more...





Extensometers for Strain Measurement



Raagen offers all type of extensometers to use with electromechanical  test  machines to able to strain measurement of mechanical tests.

 We are supplying of tensile test extensometers, clip on extensometers, compression test deflection gauges, transversal extensometers, video   extensometers, laser extensometers, long travel extensometers and automatic extensometers. See more...

High Temperature Furnaces

Raagen develops, manufactures and supplies high temperature test furnaces for quality assessment in material testing under high  temperature (HT).

Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials.  The furnaces can using with Raagen Electromechanical Test Machines to determine material characterisation of elevated temperatures. See more...







Environmental Chambers for Universal Testing Machines



Raagen environmental test chambers provides extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions. A full range of complementary grips, pullrods and extensometers are available for using inside of environmental test cabinets.

Raagen makes high or low temperature testing is made possible by integrate an climalitical chamber to a universal testing machine.

See more...
