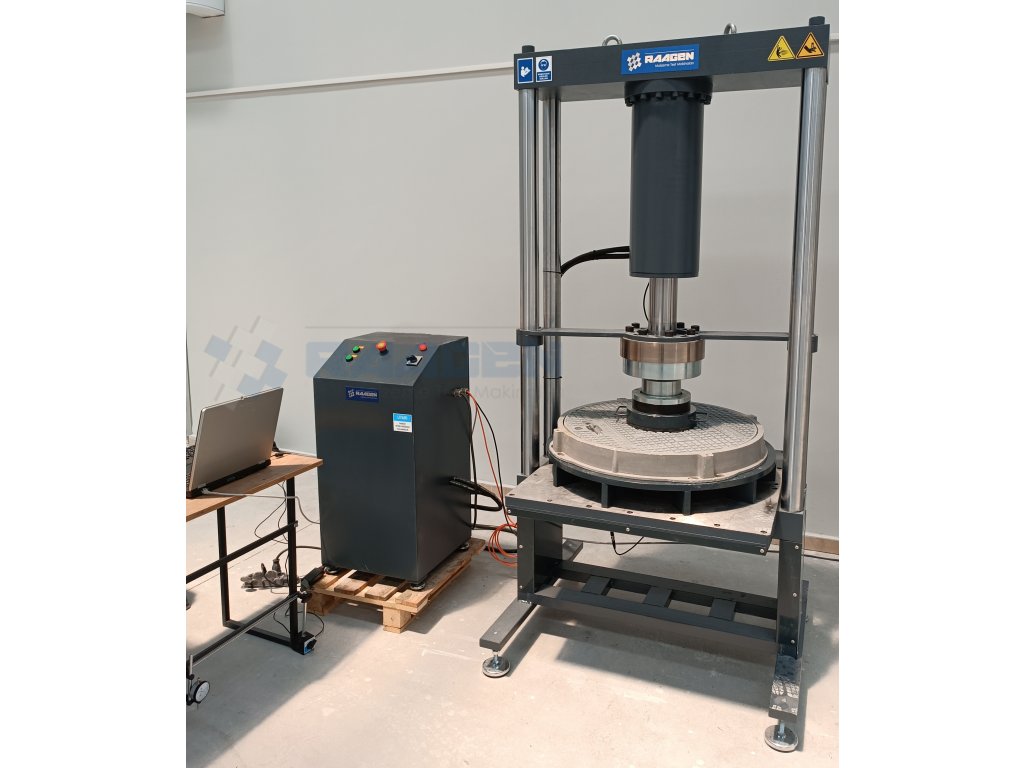

RAAGEN MANHOLE COVER TEST MACHINE

Raagen Material Testing Machines manufactures high-precision testing machines designed to ensure the reliability of manhole covers used worldwide, even under the most demanding conditions. Our products are manufactured in accordance with international standards and can be customized to meet the specific needs of our customers.

Why Raagen?

High Capacity and Precision: Our machines can perform the most challenging tests with a load capacity of up to 1000 kN. Laser position measurement sensors ensure highly accurate and reliable test results.

Flexible Design: We offer the ability to customize capacity, stroke, and other technical specifications according to your requirements.

Compliance with Standards: Our products comply with international standards such as EN 124-1.

User-Friendly Software: Our testing software includes all the necessary features for permanent settlement, load-bearing capacity, flexural strength, and fatigue resistance tests according to EN 124 standards. It simplifies data analysis and reporting.

CE Certificate and ISO 9001 Certification: Our products have the European Union's CE certificate and ISO 9001 quality management system certificate.

Standard Features

• Capacity: 1000 kN (We can produce machines with lower and higher capacities upon request)
• Floor Type, 4-column
• Load Cell: Class 0.5,
• Class 1 according to ISO 7500-1
• Laser Position Measurement Sensor: Resolution 10 μm
• Loading Speed: 1 kN/s – 5 kN/s
• Vertical Test Distance: 400 mm - standard model (Can be adjusted according to your request)

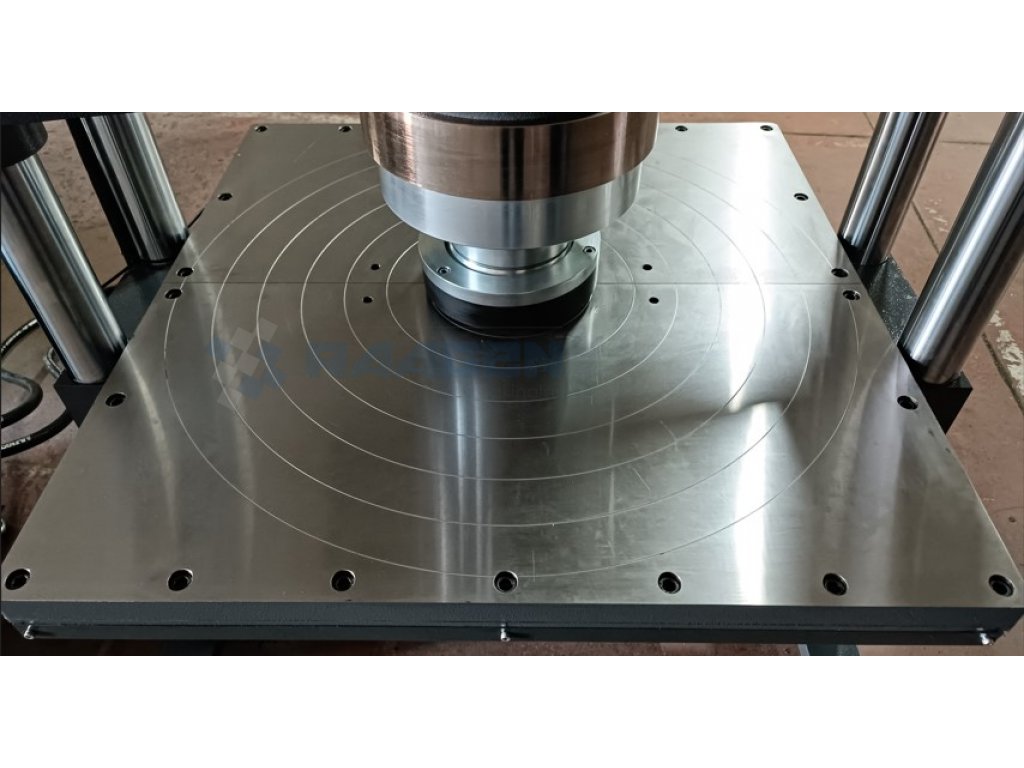

• Test Table: Suitable for samples up to 800x800 mm as standard (Can be adjusted according to your request)

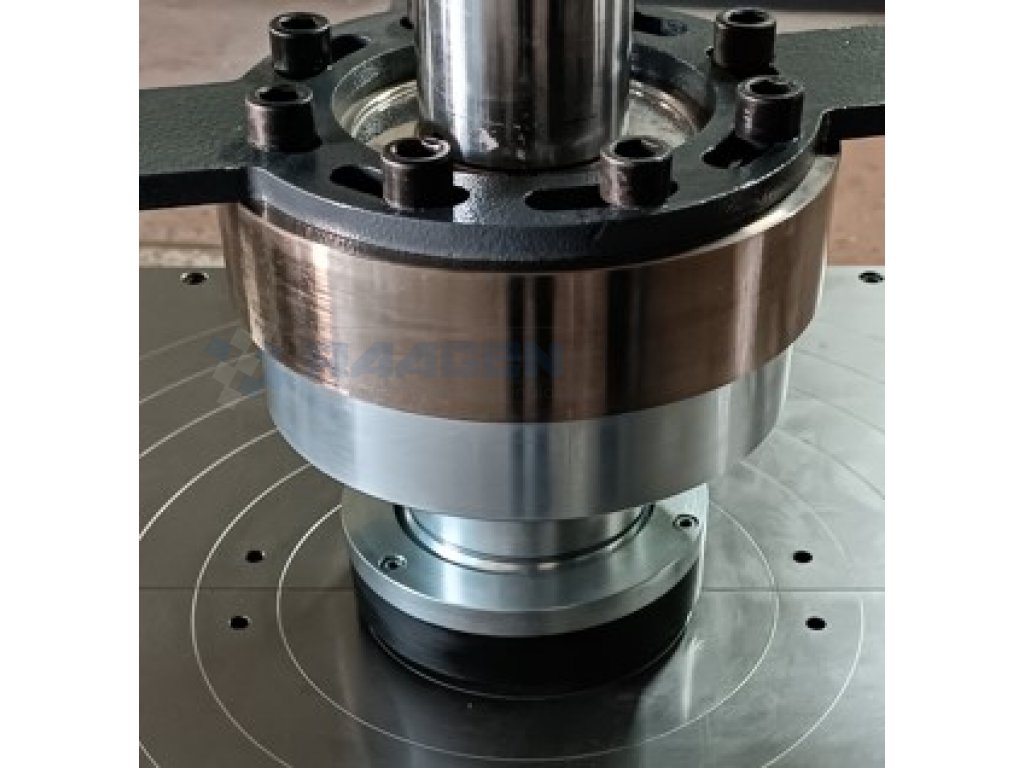

• Movable Head Pressing Fixture: Pressing force 1000 kN

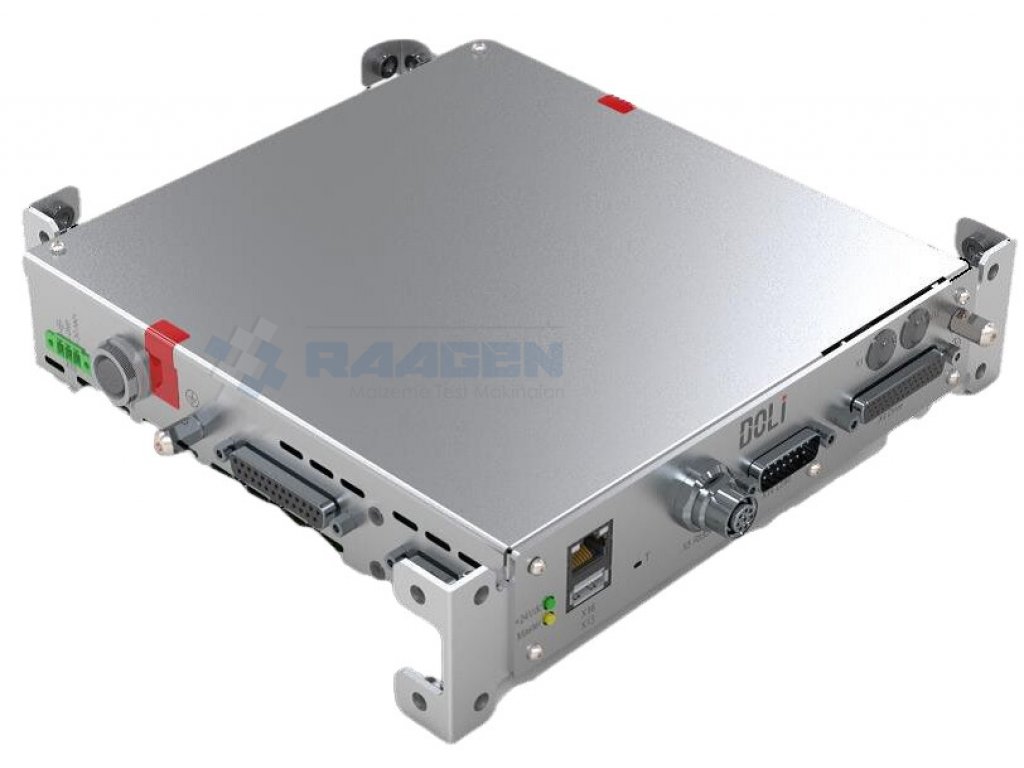

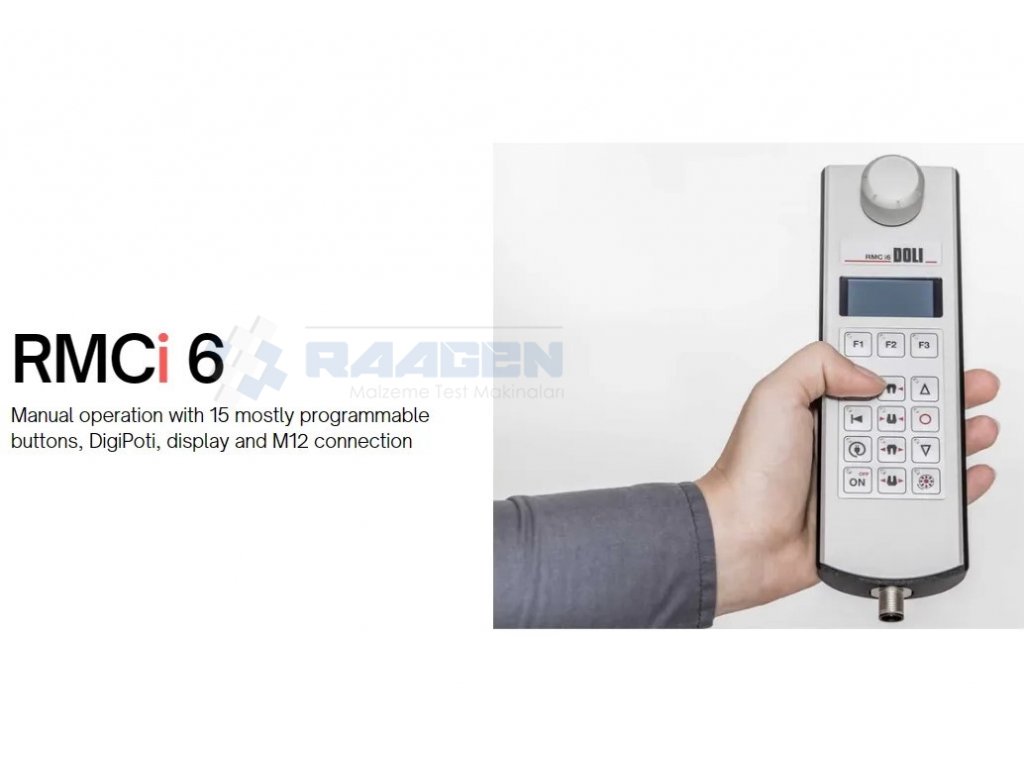

• Control System: Doli EDCi10 Controller, Rmc i6 Hand Control
• Material Testing Software: Compatible with EN 124 standards, multilingual, data analysis and reporting features

Testing Methods

With our machines, you can perform the following tests:

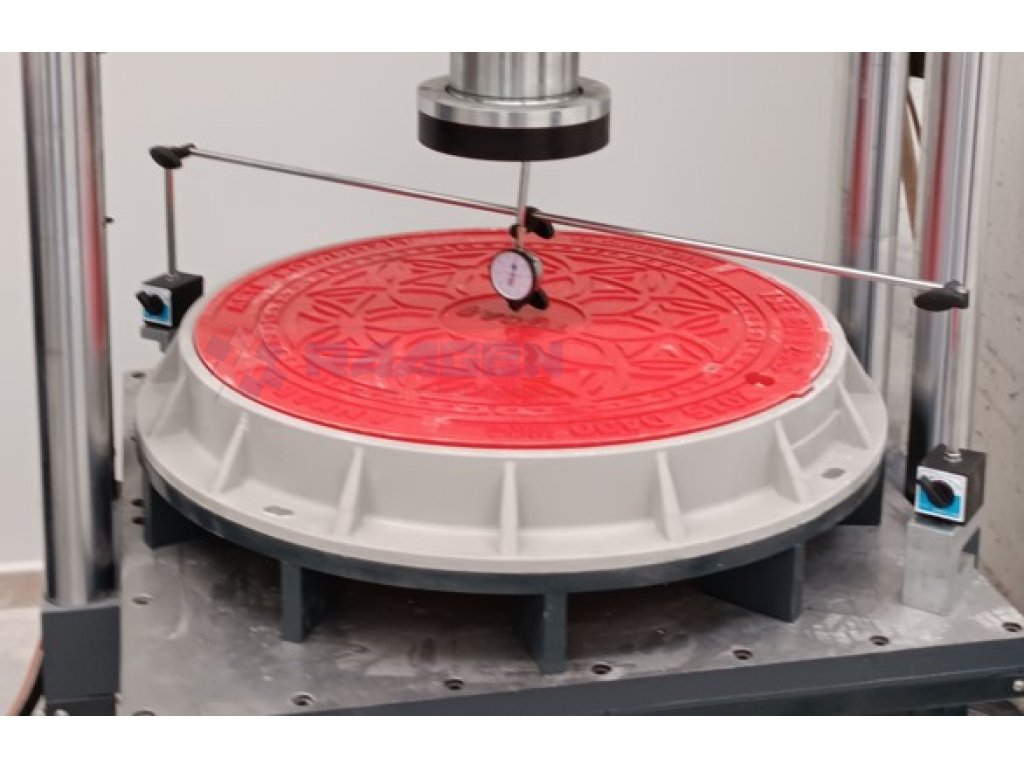

• Permanent Settlement Test: Used to determine if the manhole cover permanently deforms when subjected to a load.

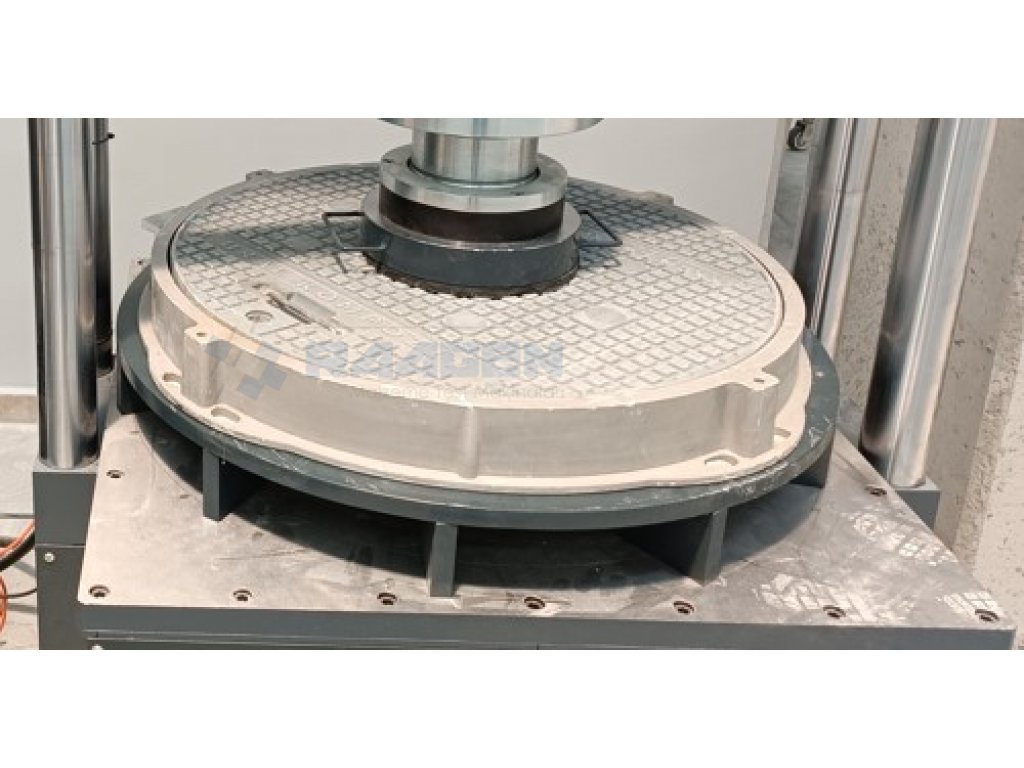

• Load-Bearing Capacity Test: Used to measure the load-bearing capacity of the manhole cover.
• Flexural Strength Test: Used to measure how much the manhole cover bends under load.
• Fatigue Resistance Test: Used to measure the resistance of the manhole cover to repeated loads. (with DTM-900-S3 model)

Why Choose Us?

Expert Team: Our experienced engineers are dedicated to providing customized solutions for you.

Quality Production: Our production processes are carried out in accordance with the highest quality standards.

Global Service: We provide sales and service to our customers worldwide.

Raagen Material Testing Machines is a leader manufacturer in manhole cover testing machines. Our products are continuously improved to meet the needs of our customers and set the highest quality standards in the industry. For more information, please contact us.
