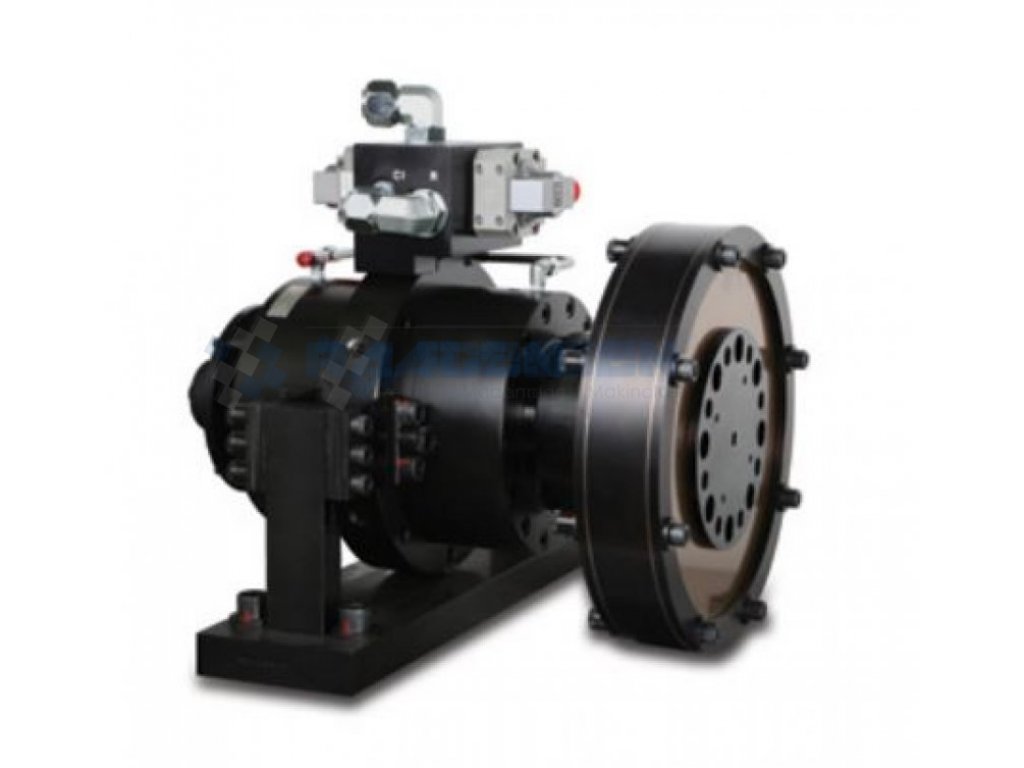

Raagen Rotary Test Actuators

Raagen Rotary Test Actuators are heavy-duty torque generation devices that operate under precision servovalve control. When matched with servovalves, transducers, and closed-loop control electronics, Rotary Actuators are suited for testing materials, structures, and components.

The double-vane rotor design accommodates full force application through 100° of rotation. Matched reaction brackets, diaphragm flexures, and reaction bases allow you to create versatile test configurations that you can easily reconfigure. Available instrumentation options include angular displacement transducers, torque cells, and differential pressure cells.



Features

» Heavy-duty bearings accommodate significant radial and axial loads

» Precision chamber and rotor design ensures zero actuator backlash during torque reversals

» Available with a complete line of fixturing and angular displacement transducer options

» Servovalve ports are compatible with standard servovalve manifolds

» Balanced double vane rotor design reduces friction and provides continuous torque output through 100° of rotation

» Separate actuator mounting and fixture attachment equipment accommodate diverse test articles and configurations

» Diaphragm flexures are available to reduce excessive thrust and side loads exerted on the test specimen







Electromechanic Test Machines Grips And Test Fixtures



Raagen has a big engineer team for designin of different test fixtures according     to various test     standards.This team analyse the customer's exact requirement  of required tests. They offer   correct fixture types and dimensions     for customer.Raagen offers different kind of tensile test   fixtures, compression  test plates, flexural and bending test apparatus, shear test fixtures, peeling   tests fixtures, eccentric rollers, chucks, puncture test fixtures, specimen cutters and cutting dies. See more...





Extensometers for Strain Measurement



Raagen offers all type of extensometers to use with electromechanical  test  machines to able to strain measurement of mechanical tests.

 We are supplying of tensile test extensometers, clip on extensometers, compression test deflection gauges, transversal extensometers, video   extensometers, laser extensometers, long travel extensometers and automatic extensometers. See more...

High Temperature Furnaces

Raagen develops, manufactures and supplies high temperature test furnaces for quality assessment in material testing under high  temperature (HT).

Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials.  The furnaces can using with Raagen Electromechanical Test Machines to determine material characterisation of elevated temperatures. See more...







Environmental Chambers for Universal Testing Machines



Raagen environmental test chambers provides extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions. A full range of complementary grips, pullrods and extensometers are available for using inside of environmental test cabinets.

Raagen makes high or low temperature testing is made possible by integrate an climalitical chamber to a universal testing machine.

See more...
