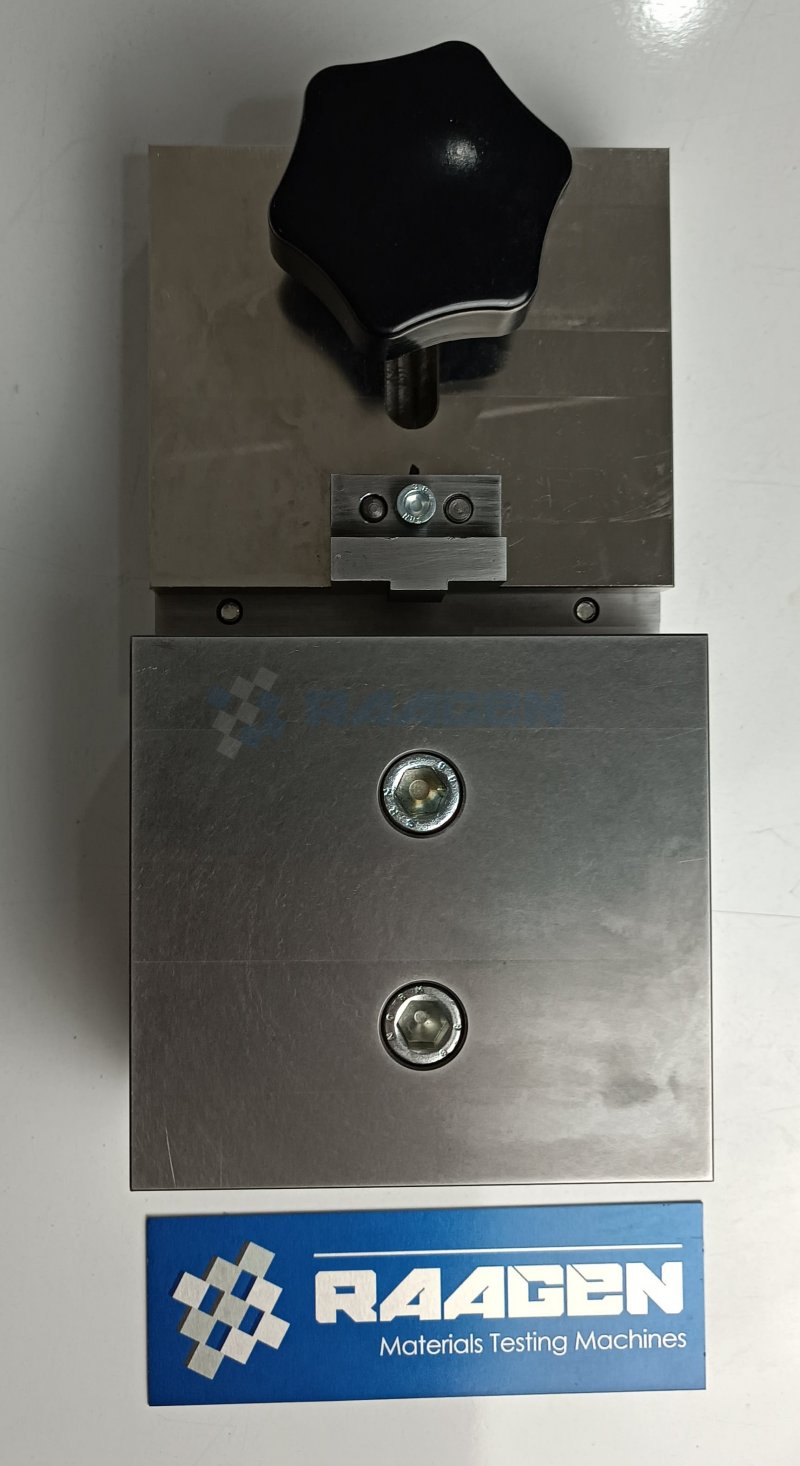

ANSI A118-1 Test Fixture
Shear Testing Fixture adhering to the specifications outlined in EN 1324 Fig. 2, ANSI A118.1, NF EN 12003, and ISO 13007-2 Fig. 9.
Application:
The test specimen is secured within the fixture and subjected to a compressive load until structural failure occurs.
Technical Specifications:
Load capacity: 20 kN
Body: Steel, nickel-plated
Temperature range: 0 … +70°C (Other temperature ranges available on request.)
Scope of supply: 1 fixture*
*Compression plates is needed for the test, should be purchased separately.
Raagen designs and produces ANSI A118-1 test fixture according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
