ASTM C273 Shear Test Fixture
Shear Properties of Sandwich Core Materials

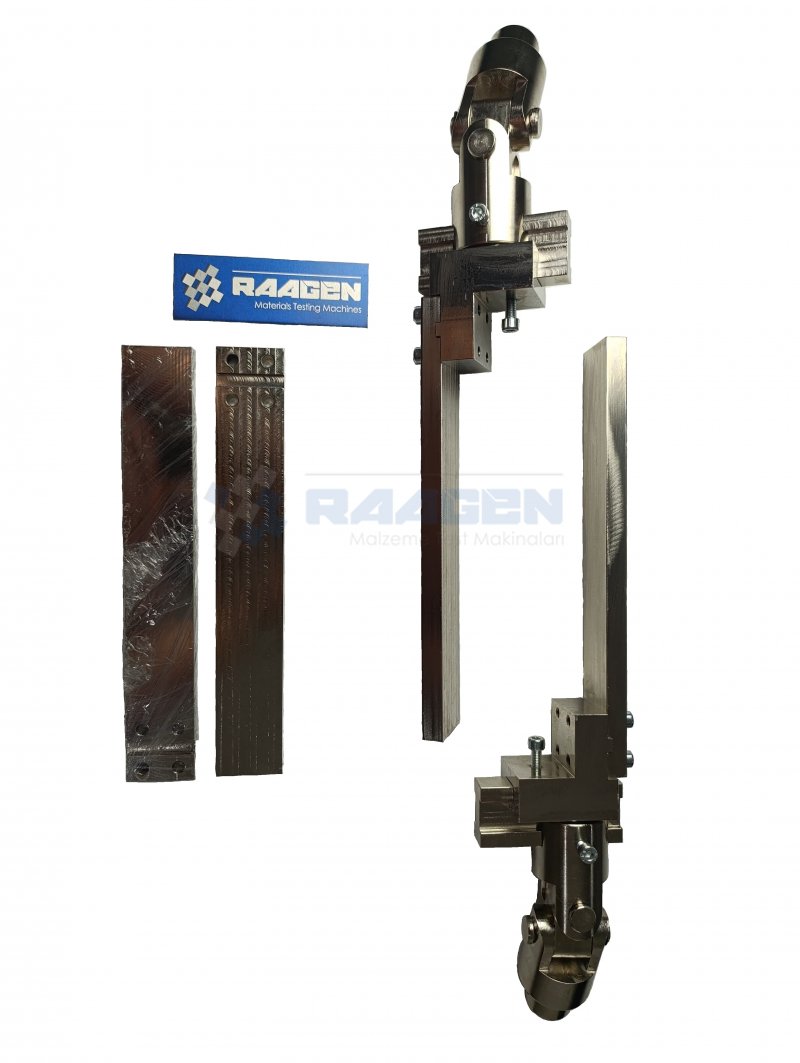

Two types of fixture are available for ASTM C273 test standard: one working in a tension mode and one working in a compression mode.
Either fixture can test a variety of different sandwich core materials including honeycomb core structures and continuous core structures, such as foam or balsa wood.
Conforms to ASTM C273 Fig. 2
LVDT connection adaptor can also be added upon request. Customer must share LVDT measurements.
Technical Specifications:
Max. Load:
50 kN for samples 51-110 mm thick
75 kN for samples 11-50 mm thick
100 kN for samples 0-10 mm thick
Body: Steel, nickel-plated
Loading plate: Steel, nickel-plated (Optional: Stainless steel, 17-4 PH Stainless Steel - H900)
Temperature range: 0 … +70°C (Further temperature ranges on request)
Scope of supply: 1 fixture including connection adapters
Raagen designs and produces ASTM C273 Shear and Compression test fixtures according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
