ASTM C297 Test Fixture
Flatwise Tensile Strength of Sandwich Constructions
ASTM C297 describes a method of determining the bond strength between the facing and core of a sandwich core panel or the strength of the core itself, if the bond strength between the facing and the core is sufficiently strong. The specimen is bonded to thick loading blocks and then subject to tensile loading applied via the blocks.

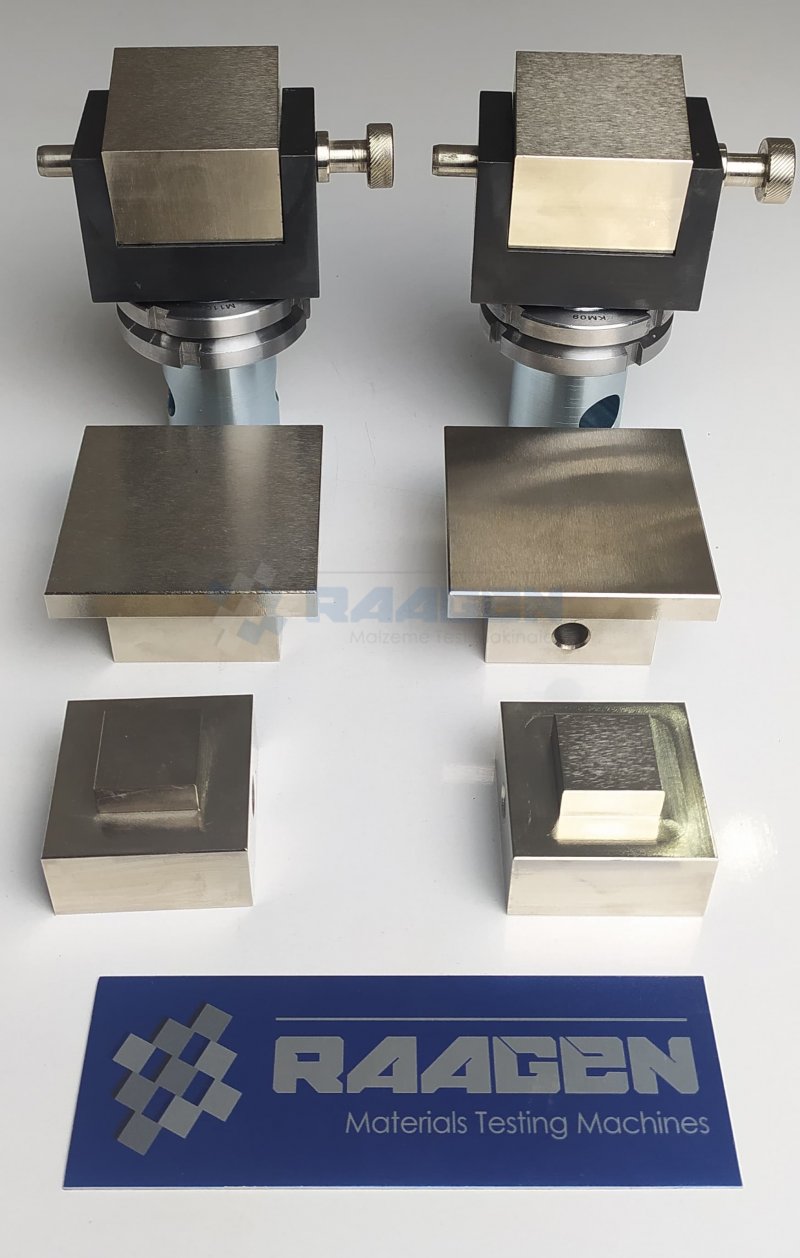

Insert Blocks:
Minimum Facing Area (mm2 [in.2])
Type1: 625 [1.0] - Surface size: 25.4 x 25.4 mm
Type2: 2500 [4.0] - Surface size: 50.8 x 50.8 mm
Type3: 5625 [9.0] - Surface size: 76.2 x 76.2 mm
Body: Steel, nickel-plated (Optional: Stainless steel, 17-4 PH Stainless Steel - H900)
For different size requirements for blocks please contact us.
Raagen designs and produces ASTM C297 test fixture according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
