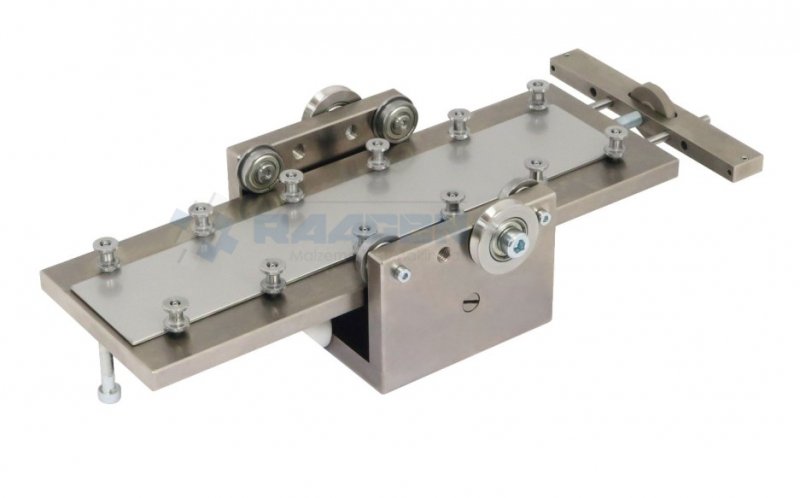

ASTM D2861 Peel Test Fixture
Peel Tests Flexible Materials
Max. load: 5 kN
Specimen width max.: Max. 50 mm
Specimen length max.: Max. 280 mm
Body material: Steel, nickel-plated
Temperature range: 0 – 70 °C
Scope of delivery: Fixture incl. mounting bar, wire and wire end tubes
Applications:
ASTM B571 Standard Practice For Qualitative Adhesion Testing Of Metallic Coatings
EN 28510 Adhesives. Peel test for a flexible-bonded-to-rigid test specimen assembly. 90° peel
ISO 8510-1 Adhesives; Peel Test For A Flexible-Bonded-To-Rigid Test Specimen Assembly; Part 1: 90° Peel
ASTM D2861 Standard Test Methods for Flexible Composites of Copper Foil with Dielectric Film or Treated Fabrics (Fig.A)
DIN EN 1939 Self Adhesive Tapes - Determination Of Peel Adhesion Properties (Fig.B1)
ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
GOST 26246 Epoxide impregnated glass fabric foil-clad electrical insulating material of rated combustibility for printed plates. Specifications
ASTM D6862 Standard Test Method For 90 Degree Peel Resistance Of Adhesives
ASTM D6252 Standard Test Method For Peel Adhesion Of Pressure-Sensitive Label Stocks At A 90° Angle Peel Or Stripping Strength Of Adhesive Bonds
Raagen designs and produces ASTM D2861 peel test fixture according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
