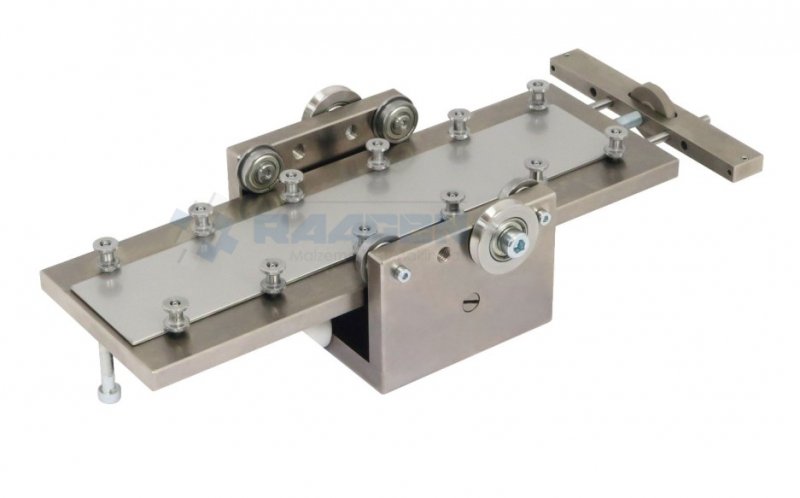

ASTM D3330 Peel Test Fixture
Peel Adhesion of Pressure-Sensitive
Peel testing, also referred to as adhesion testing, represents a technique employed within materials science and engineering to quantify the bond strength existing between two materials. This evaluation is of particular significance in determining the efficacy of adhesive bonds across a diverse range of products and materials. The 90° Peel Test specifically involves detaching one substrate from another while consistently maintaining a 90-degree angle between them throughout the peeling action. This configuration is frequently utilized to assess the adhesion strength of a flexible bonded layer applied to a rigid substrate. The resistance encountered during the peeling of the tape from the substrate serves as the measure of adhesion.
Technical Specifications:
Max. load: 5 kN
Specimen width max.: Max. 50 mm
Specimen length max.: Max. 280 mm
Body: Steel, nickel-plated
Temperature range: 0 – 70 °C
Scope of delivery: Fixture incl. mounting bar, wire and wire end tubes
Raagen designs and produces ASTM D3330 peel test fixture according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
