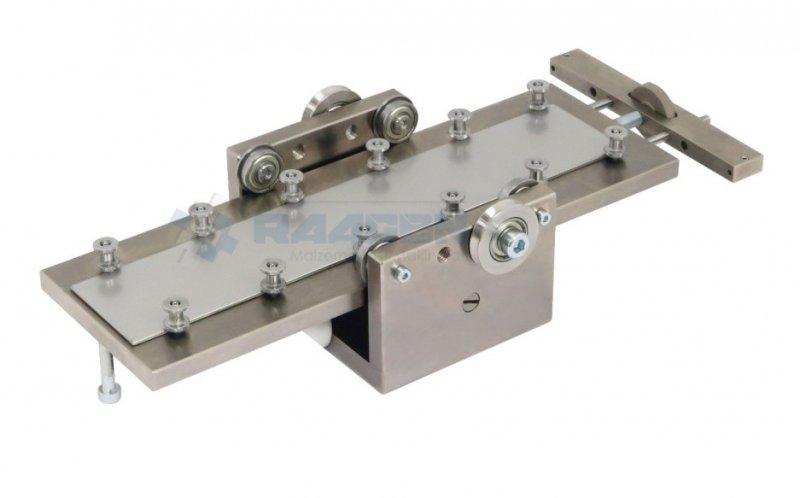

ASTM D6252 90° Degree Peel Test Fixture
90° Peel Resistance of Adhesives
Used in materials science and engineering, peel testing (also known as adhesion testing) measures the bond strength between two materials and is especially important for evaluating adhesive bond performance in different products and materials. The 90° Peel Test, a specific type, involves peeling one substrate away from another at a constant 90-degree angle. This is commonly used to assess the adhesion of a flexible layer bonded to a rigid surface, where the force resisting the peel of the tape from the substrate is the measured value.
Max. load: 5 kN
Specimen width max.: Max. 50 mm
Specimen length max.: Max. 280 mm
Body: Steel, nickel-plated
Temperature range: 0 – 70 °C
Scope of delivery: Fixture incl. mounting bar, wire and wire end tubes
Applications:
- ASTM-B571 Standard Practice For Qualitative Adhesion Testing Of Metallic Coatings
- EN28510 Adhesives. Peel test for a flexible-bonded-to-rigid test specimen assembly. 90° peel
- ISO 8510-1 Adhesives; Peel Test For A Flexible-Bonded-To-Rigid Test Specimen Assembly; Part 1: 90° Peel
- ASTM D2861 Standard Test Methods for Flexible Composites of Copper Foil with Dielectric Film or Treated Fabrics (Fig.A)
- DIN EN 1939 Self Adhesive Tapes - Determination Of Peel Adhesion Properties (Fig.B1)
- ASTM D3330 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
- GOST 26246 Epoxide impregnated glass fabric foil-clad electrical insulating material of rated combustibility for printed plates. Specifications
- ASTM D6862 Standard Test Method For 90 Degree Peel Resistance Of Adhesives
- ASTM D6252 Standard Test Method For Peel Adhesion Of Pressure-Sensitive Label Stocks At A 90° Angle
- Peel Or Stripping Strength Of Adhesive Bonds
Raagen designs and produces ASTM D6252 90° peel test fixture according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
