ASTM D882 Test Fixture - Dual Blade Specimen Cutter
Standard Test Method for Tensile Properties of Thin Plastic Sheeting
Manual dual blade sample cutter for cutting uniform strip specimens A mm and B mm wide peel tests on films and foils.
An appropriate test piece cutter shall hold two single edge razor blades in parallel planes a precise distance apart, to form a cutter of exact specimen width; two cutters, A mm and B mm cutting width, shall be available or appropriate alternatives which will not cause edge damage.
The precision of the razor blade separation shall be the nominal width ±0,1 mm.
Applicable to preparing specimens according to ASTM F88, ASTM D882, ASTM D6287 procedure B, ISO 29862 and similar standards.

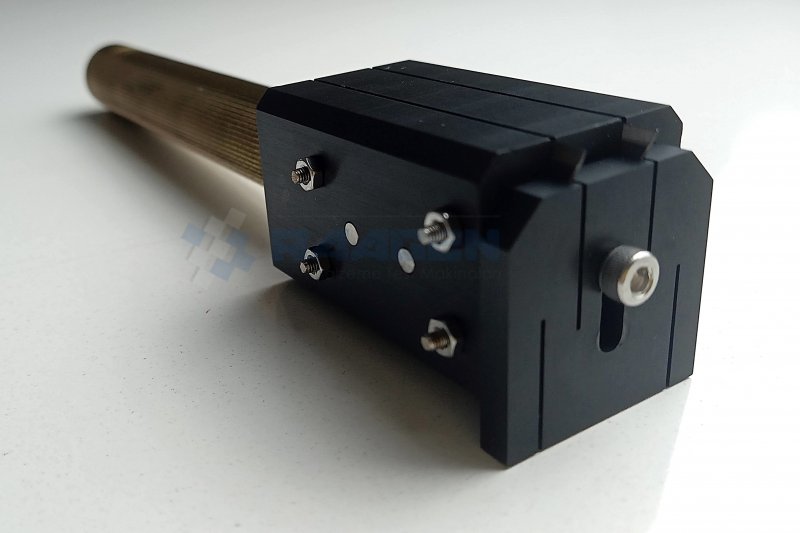

Test Piece Cutter
Cutting width: A: 15 mm and B: 25,4 mm (Dimensions can be customized according to user request.)
Temperature range: 0 – 70 °C
Scope of supply: Test piece cutter with 10 inserts
Raagen designs and produces ASTM D882 test fixture according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
