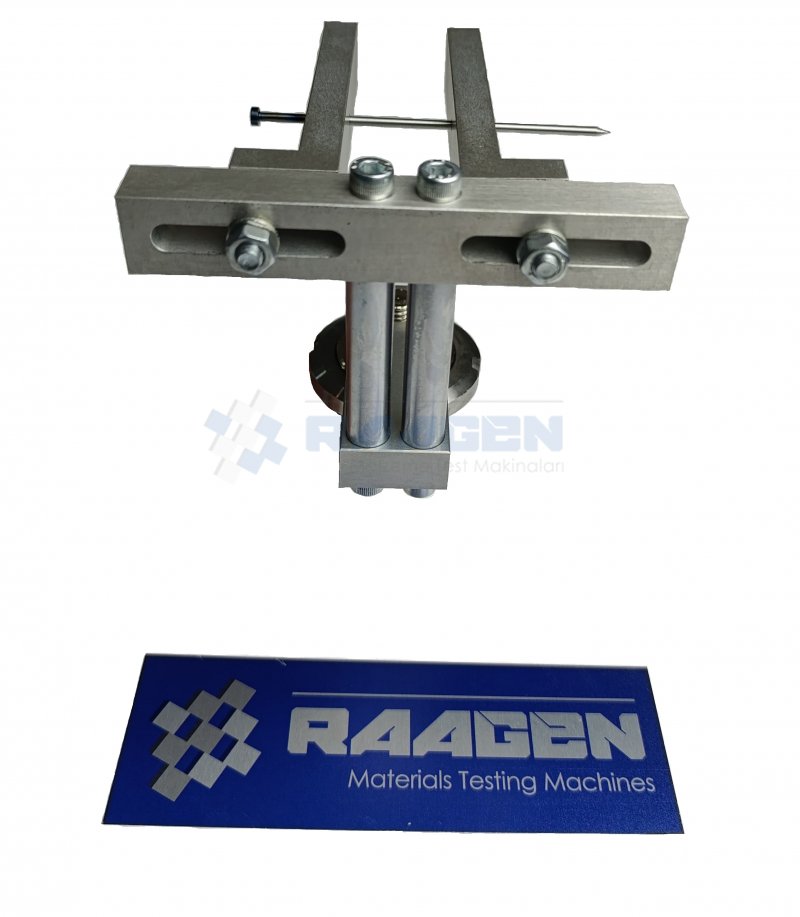

DIN EN ISO 12310-1 Tear Test Fixture
Nail Shank Tear Testing Fixture according to EN 12310-1: Flexible sheets for waterproofing - Part 1: Bitumen sheets for roof waterproofing; determination of resistance to tearing (nail shank)
Technical Specifications:
Max. Load capacity: 2 kN
Opening: 0-60 mm
Body Material: Aluminium
Nail Shank Material: Hardened steel, nickel-plated
Temperature range: 0…+70°C
Scope of supply: 1 fixture incl. nail shank and connection adapter (Upper vice grip is required for this test)
Raagen designs and produces din en iso 12310-1 test fixture according to required sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
