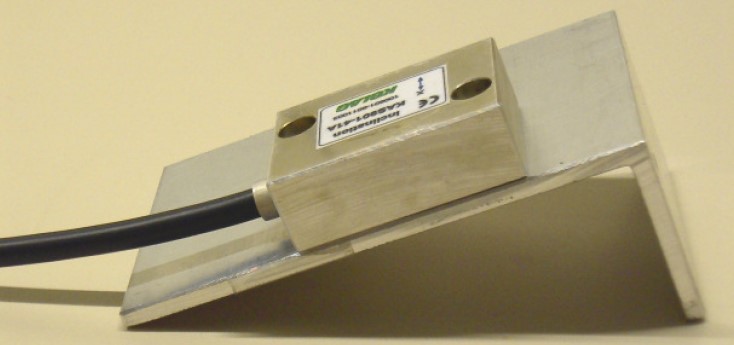

Single-channel accelerometer:

• measurement limit – 0-10 m/s 2
• repeatability 0.01° or 0.2 mg;
• resolution – 0.001° - degree of protection – not lower IP65;

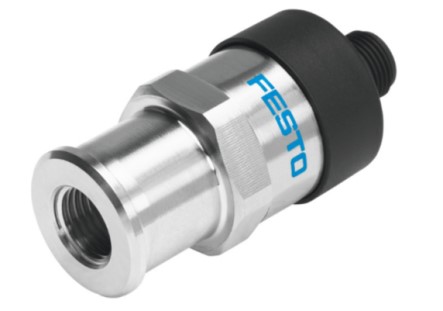

Three-channel pressure sensor:

• measurement range – 0-1000 kPa;
• measurement accuracy – 1% FS ;
• pneumatic connection - G1/4;
• operating voltage range - 8 V ... 30 V;
• electrical connection – socket type;
• degree of protection – not lower than IP65;

Four-channel pressure sensor:

• measurement range – 0-1600 kPa;
• measurement accuracy – 1% FS ;
• pneumatic connection - G1/4;
• operating voltage range - 8 V ... 30 V;
• electrical connection – socket type;
• degree of protection – not lower than IP65;

Four-channel pressure sensor:

• measurement range – 0-250 bar;
• measurement accuracy – below 0.5% FS ;
• connection - G1/4;
• signal output - 0-5 V;
• operating voltage range – 9-32 V;
• electrical connection – socket type;
• degree of protection – not lower than IP65;

Data Acquisition System

Performance Box measures G-Forces, Speed, Lap & Split Times, Predictive Lap Time (Live comparison to last lap), 0-60, 0-100, Braking Distance and more.

All these parameters are logged to an SD memory card ten times per second for later review and comparison. Performance Box contains a high-performance 10Hz

GPS engine and integrated antenna, providing a wealth of information with very easy installation and a compact size.

The Performance Box gets all its information from GPS satellites, and needs only power from a vehicle.

Velocity:

• Accuracy - 0.1 km/h
• Update rate - 10 Hz
• Resolution 0.01 km/h
•
• Accuracy 0.05% Acceleration:
• Accuracy 1%
• Resolution 0.01 G

Power: Input Voltage Range 6 – 28 V DC

GPS Antenna Internal Antenna

Measuring and testing devices to be used in the testing system will have a calibration certificate issued by a metrological service accredited according to ISO/IEC 17025:2017, including measurement uncertainty and information about the reference, valid for one year from the date of commissioning. Institutions or organizations issuing calibration certificates must have traceability according to national standards.
