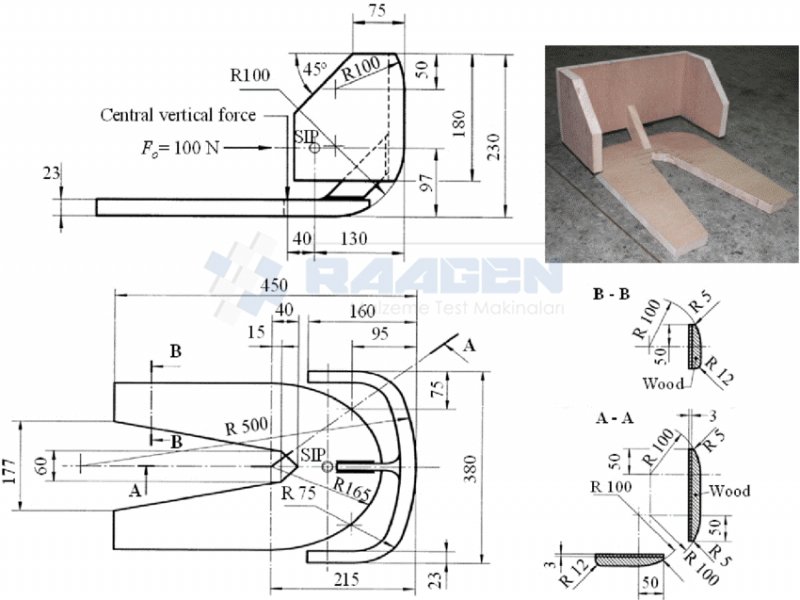

ISO 5353 SIP Reference Pointing Device with Removable Weights

Model: R-SIP-01

Achieve Precise Operator Seating Measurements with our ISO 5353 SIP Reference Pointing Device

This user-friendly ISO 5353 SIP Reference Pointing Device simplifies the process of defining the Seat Reference Point (SIP) in accordance with ISO 5353 standards.  The SIP is a crucial reference point for measuring operator visibility and posture in agricultural and earth-moving machinery.

Benefits:

Accurate SIP Determination: The device ensures precise identification of the SIP according to ISO standards.

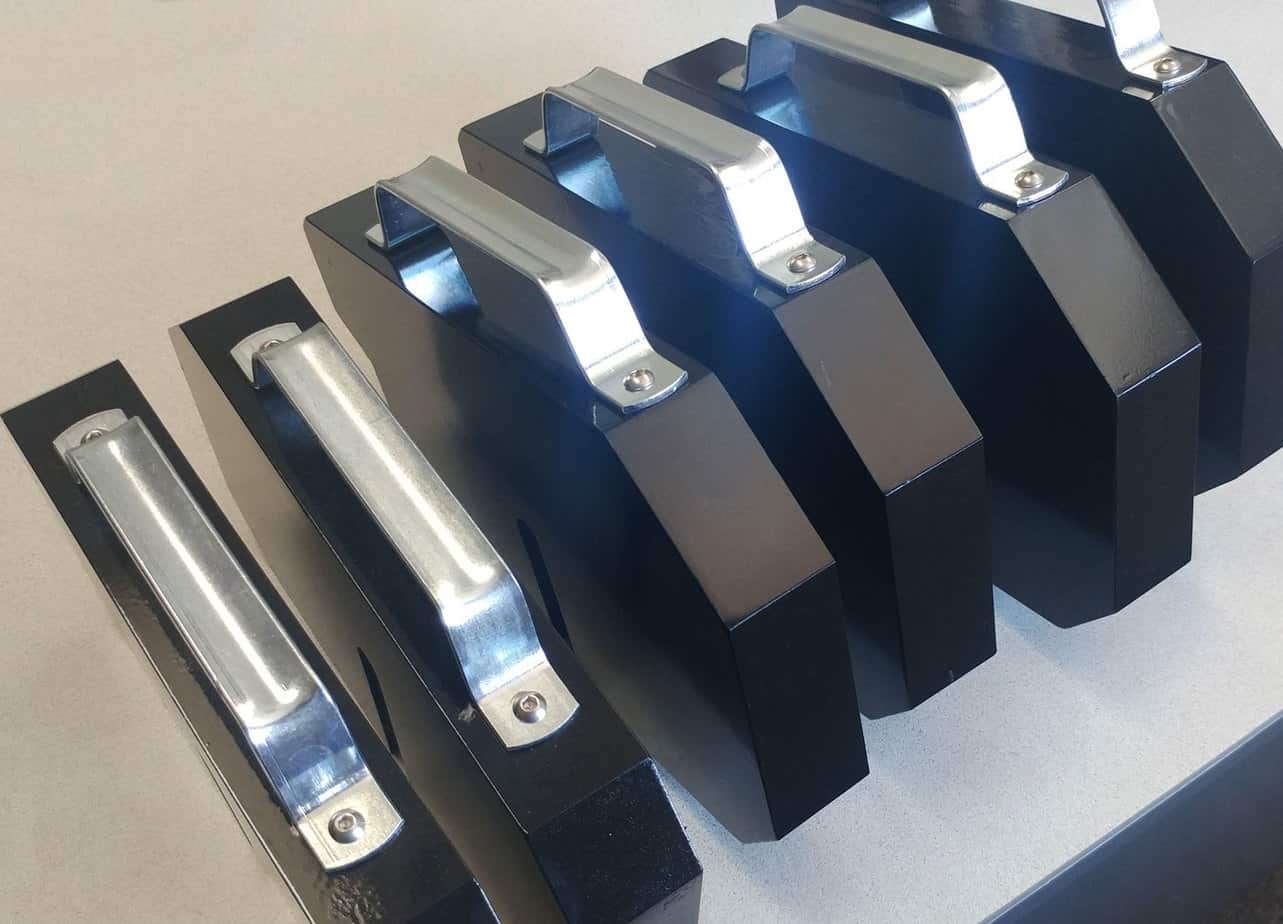

Removable Weights for Flexibility: Six removable weights with convenient grips allow for easy adjustment of the total weight to meet the required specifications (65 ± 1 kg).

Minimal Friction Surface: The hardwood working surface (or material with similar characteristics) minimizes friction for accurate measurements.

Streamlined Workflow: The device facilitates efficient SIP determination, saving time and resources.

Technical Specifications:

Device Weight (without weights)              6 ± 1 kg

Working Surface Material:            Hardwood (sanded with 200 grit or higher) or equivalent

Number of Weights:       6

Weight per Load:              10 kg

Total Weight (with all weights): 65 ± 1 kg

Tubular Axis Distance from SIP Projection:            40 mm

Contact us to learn more about how this device can streamline your compliance testing process.
