Tractor and Implement Energy Assessment System

Model: EAT-SP1

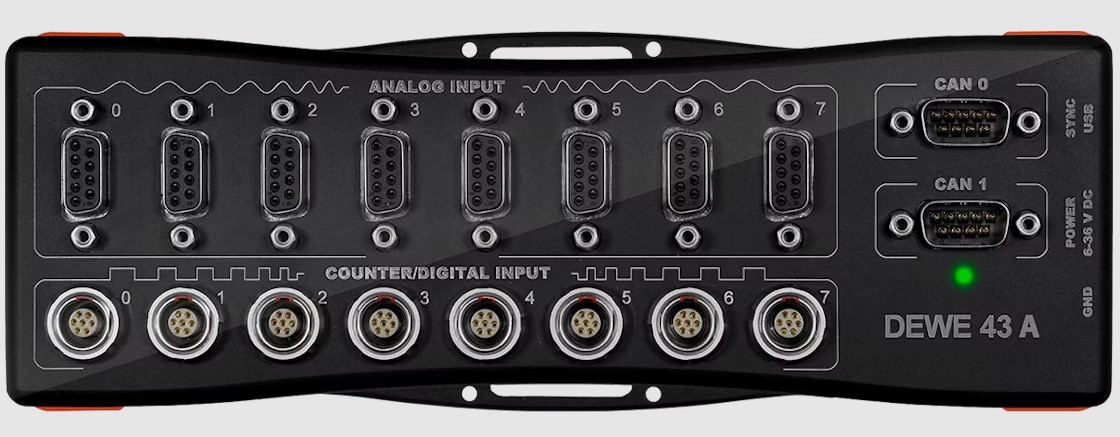

• Number of connected channels: 8 individually configurable isolated channels
• Accuracy class: 0.05%
• Sampling rate per channel: up to 40 kilosamples per second
• Types of connected sensors: Voltage; Max. Range: ± 10V Strain gauges; full bridge, half bridge, quarter bridge

IEPE/ICP Sensors; Potentiometer; Pt100.. Pt2000; Thermocouple; CAN bus ports; 2 ch (isolated)

• ADC (analog-to-digital converter): 24-bit sigma-delta
• Degree of protection – IP50
• DC supply voltage range current: up to 50 V Power consumption: <20W
• Maximum module cable length: 100 m

Load cells:

• linear strain gauge with one sensitive element, nominal resistance 350 Ohm (100 pcs.);
• strain gauge torsion/shear strain sensor with two sensitive elements 350 Ohm (50 pcs.);
• double-support strain gauge (bridge connection circuit), traction force - from 0.2 to 3 kN (12 pcs.).
• strain gauge (bridge connection circuit), measured traction force – 0.5-5 kN (3 pcs.).
• cantilever strain gauge (bridge connection circuit), measured traction force – 0.5-5 kN (6 pcs.)
• traction strain gauge 3 tons, 5 tons. and 10 tons. (strain gauge);
• shielded very thin measuring cable - 100 m, number of cores 4 pcs., core cross-section 0.16 mm 2 , resistance 0.492 Ohm/m;
• inductive sensor for measuring rotation speed – 400-2800 rpm.
• sensor for measuring compression/tension force, measurement range 0-100 kN, nonlinearity ±0.04%;

Torque meters:

• Torque sensor - 2 types (6 and 8 slots), maximum measured torque - 400 Nm - 2500 Nm, rotation speed - from 400 to 1500 rpm.

Calibration stands

• a stand for calibrating shaft torque with electronic control and software.
• a stand for calibrating strain gauges with electronic control and software (with standard dynamometers for 500, 1000, 2000 and 5000 kg)

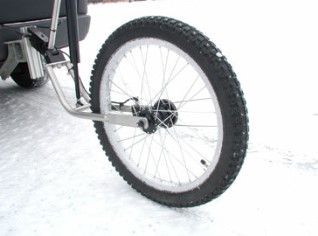

Measuring system “fifth wheel” with mount and strain gauge:

• wheel size – 28”;
• circumference – 2.16 m;

Rugged laptop
