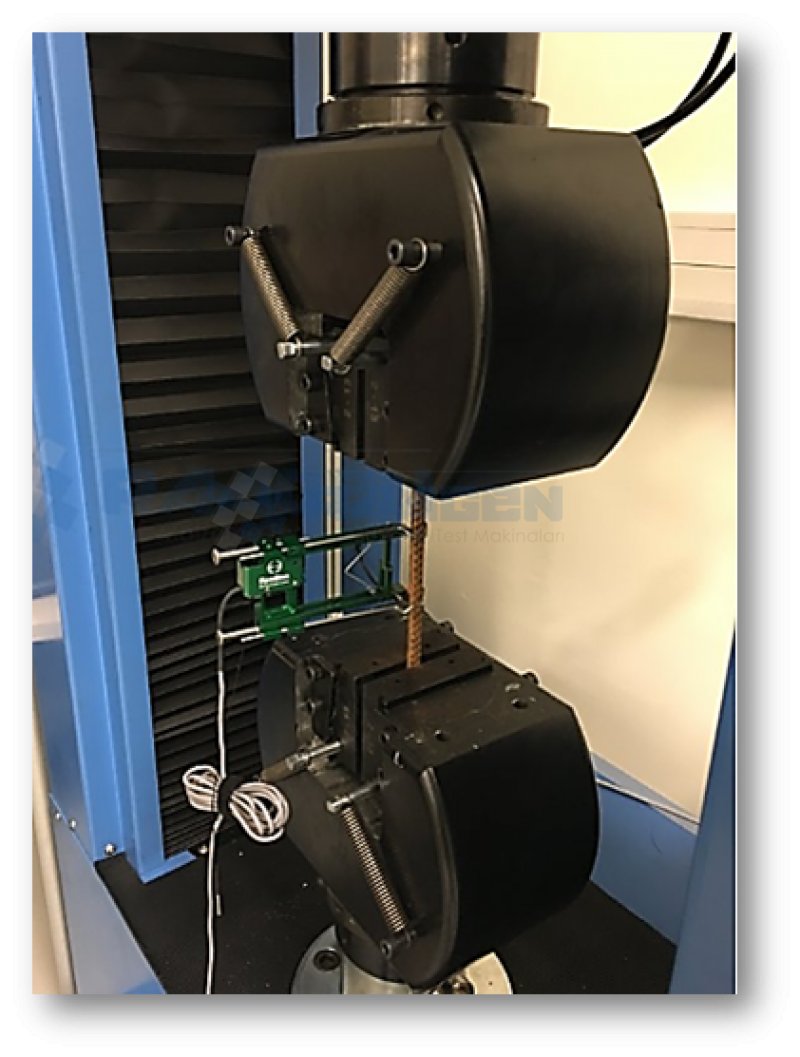

Pneumatic Wedge Action Tensile Test Grips
Technical Specifications:
Capacity: 300 kN*
Temperature range: 0 … +70°C
Body: Steel
Jaws: Hardened steel, 60 - 61 HRC
Scope of supply: 1 pair of grips and 2 sets of jaws including connection adapters
*NOTE: We're able to manufacture pneumatic grips with a wide range of capacity according to your testing needs. Please be sure to get in touch for different capacities.
Features:
The pneumatic wedge action grip is designed for easy specimen loading, alignment, and positioning. The open-front design allows easy insertion of specimens and exchange of grip faces.
After initial face to specimen contact, gripping force will increase as the testing load increases.
Virtually no preload is seen during specimen clamping due to the design of the moving grip bodies.
This makes them particularly suitable for testing high strength materials, such as metals and composites, ensuring that specimen slippage is eliminated. Wedge grip includes a locking function for safe sample insertion and removal.
(Not suitable for through-zero/reverse stress or fatigue testing.)
Relevant Materials:
Plastic, metals, elastomers, and composites
Relevant Specimens:
Plates, Rods, Wires etc.
Jaws for Pneumatic Wedge Action Tensile Grips
Body: Hardened Steel, 60 – 61 HRC
Delivered with 2 sets* of jaws:
- 0-10 mm Serrated Jaws for flat specimens.
Scope of delivery: 1 set = 4 jaws
- Ø 5-13 mm Jaws surface for round specimens.
Scope of delivery: 1 set = 4 jaws
*Jaw faces with different dimensions and surfaces available on request.
Raagen designs and produces Pneumatic Wedge Action Tensile Test Grips according to required load capacity, sample sizes and test needs with competitive price, high quality and fast delivery principles.
For more information about Raagen Test Fixtures, Contact Us.
