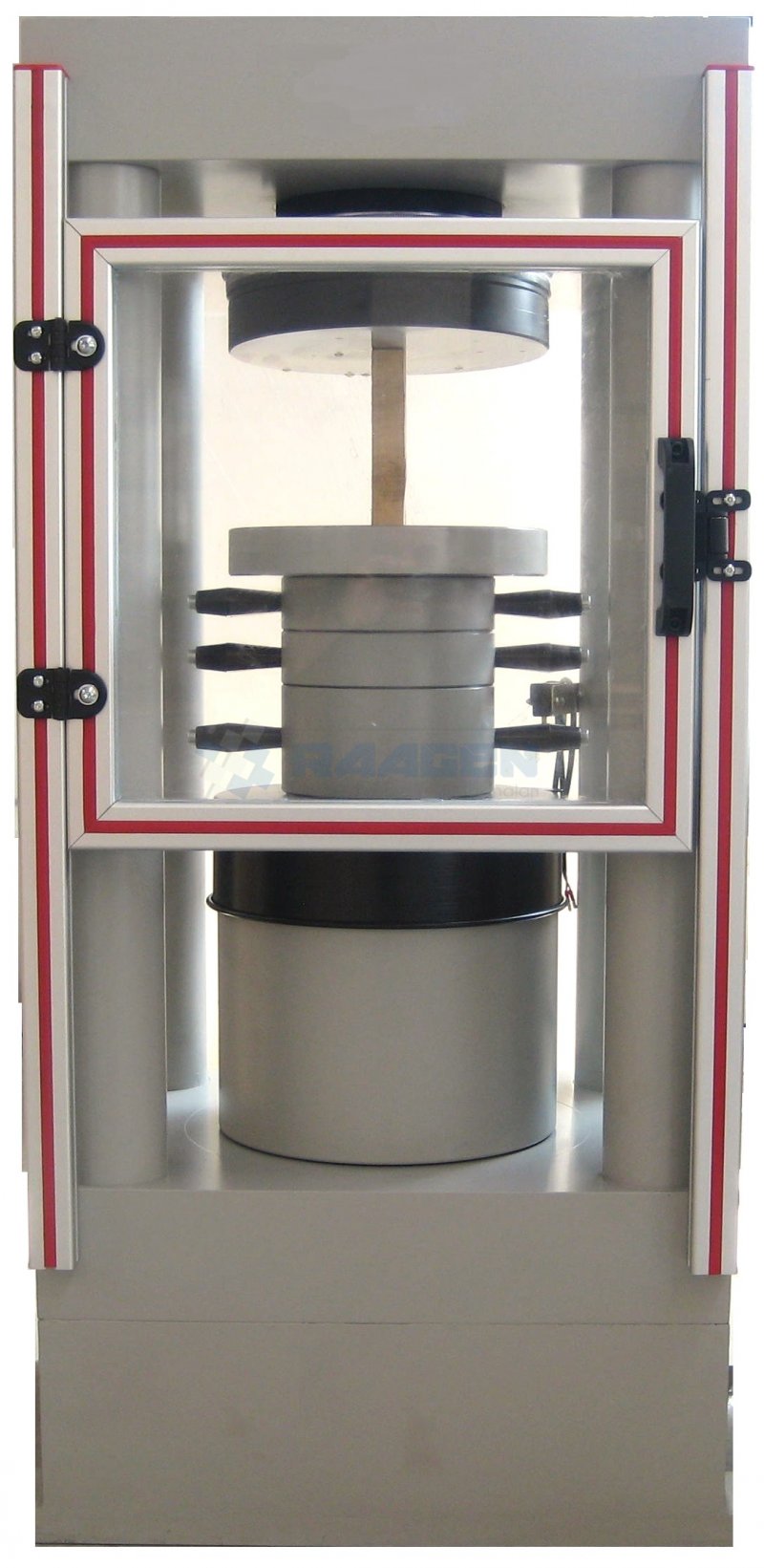

RAAGEN 2000kN CONCRETE PRESS (4 Column)

Measure the compressive strength of your concrete samples in the most accurate and reliable way with the RCP-200 Concrete Press. Manufactured in accordance with the TS EN 12390-4 standard, this high-performance device is an indispensable part of quality control in the construction industry.

• High Capacity and Versatility: With its 2000 kN capacity, you can easily test cube and cylinder samples from 100x100x100 mm to 200x200x200 mm. It can also be used for samples of different sizes thanks to additional elevation devices.
• Reliability and Durability: Thanks to its 4-column design, hardened plates and robust structure, it offers long-lasting and reliable use.
• Precise Measurement: You get extremely accurate results with Class 1 load measurement sensitivity between 20kN-2000kN.
• User Friendly: Thanks to its touch screen software, you can easily perform test operations, instantly view and save results.
• Multiple Test Feature: It offers the opportunity to perform various tests such as elasticity module, Poisson ratio.
• Safety Measures: It provides a safe working environment thanks to its emergency stop button, pressure safety valve and contact detection feature.

Technical Specifications:

• Model: RCP-200
• Capacity: 2000 kN
• Stroke: 50 mm
• Load Measurement Accuracy: Class 1 between 20kN-2000kN
• Standard: TS EN 12390-4
• Additional Features: Elasticity module apparatus, touch screen software, multi-language support, USB connection

You can contact us for more detailed information about Raagen Concrete Press and for your price requests.
