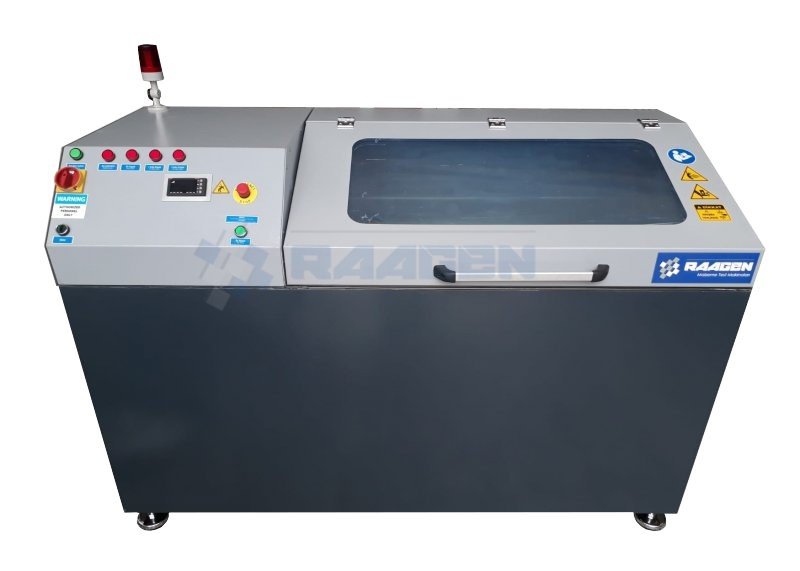

RAAGEN PTM-300/4000-S Hydrostatic Pressure Test Machine
Stand for tensile testing of high-pressure hoses according to the ISO 1402 and ISO 6605 method
Pressure and controlled gradient burst testing of pipe or other hydraulic components in accordance with international industry standards such as SAE J343, DIN 20024, ISO 18869, ISO 1402
Low pressure test: 20 to 300 bar
High pressure test: from approximately 80 to 4000 bar
PTM-300/4000-S Hydrostatic Pressure Test Machine
• Testing software with PLC control
• Pressure Measuring System: Pressure Transmitters
• Active sound and light warning system during testing
• Floor type, ergonomic, safe and user-friendly design.
• External Dimensions of the Machine: 80x176x125 cm (h) (These are standard model dimensions, they may vary depending on sample dimensions and demand)
• Power: 220V/380V 50Hz.
• Test Environment: Water
• The machine has a 40lt stainless water tank.
• Emergency Stop button
Low Pressure System
• Low pressure test capacity: 20 to 300 bar
• Long-lasting water pump with ceramic piston
High Pressure System
• High pressure test capacity: from approximately 80 to 4000 bar
Test Chamber and Internal Dimensions:
The specified dimensions are standard model dimensions, they may vary depending on sample dimensions and demand.
• Material of the test chamber is stainless steel.
• There is a plexiglass window on the cover in order to observe during tests. Double sided plexiglass windows are used for security.
• There is LED lighting in the chamber.
• A safety door switch with a protection lock is used to prevent the cover from being opened during the test.
• The cover is made of double-layer steel plates for security purposes.
• Industrial gas spring (damper) system is used to easily open and close the cover.
Raagen XRaa Pressure Test Software
Testing is performed using a PLC
Time/Pressure graph axis
Enables acquisition of test data via USB interface
Language of the software is English
Made in Turkey
