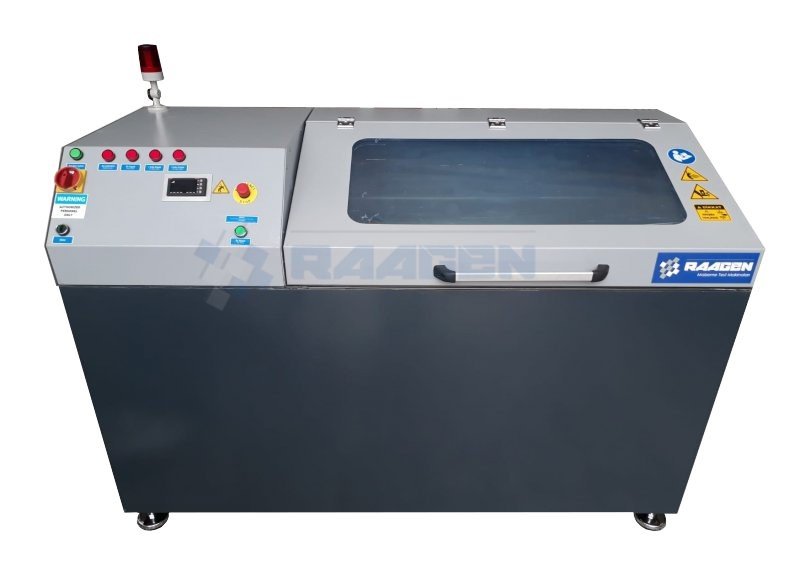

RAAGEN PTM-700-S Hydrostatic Pressure Test Machine

Model: PTM-700-S

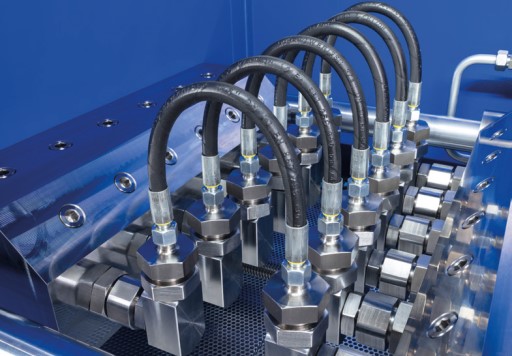

The bench PTM-700-S performs impulse test pressure of hydraulic components like flexible hoses and rigid pipes, fittings, valves, quick release couplings according to SAE J343, ISO 6803, ISO 6605 and ISO 18869 specifications.

PTM-700-S  TECHNICAL DATA

• Pressure wave impulse according to SAE J343, ISO 6803 ISO 6605 and ISO 18869 standards
• Maximum test pressure 700 bar (10150 Psi)
• Minimum test pressure 50 bar (725 Psi)
• Displacement per impulse of 330 cm3 (20 inch3)
• Maximum test frequency 1 Hz
• Maximum oil temperature 150°C (302 °F)

SAFETY DEVICES

• Electrical Interlocks, which prevent from starting the test when the hatch is open
• Displaying windows, which allow to see the elements being tested
• Complete with windows and metallic grid protections
• Emergency button
• Automatic stop in caso of any bench malfunction

Scope of delivery: The test bench is delivered with a calibration certificate issued by a metrology service accredited according to SO/IEC 17025:2017, containing measurement uncertainty and reference information and valid for one year from the date of commissioning.

Raagen XRaa Pressure Test Software

• Testing is performed using a PLC
• Software language is English
• Transfers test raw data to Excel.
• Has calibration menu.
• Desired test results can be obtained in units such as kg/mm², N/mm², KSI, PSI and MPa etc.

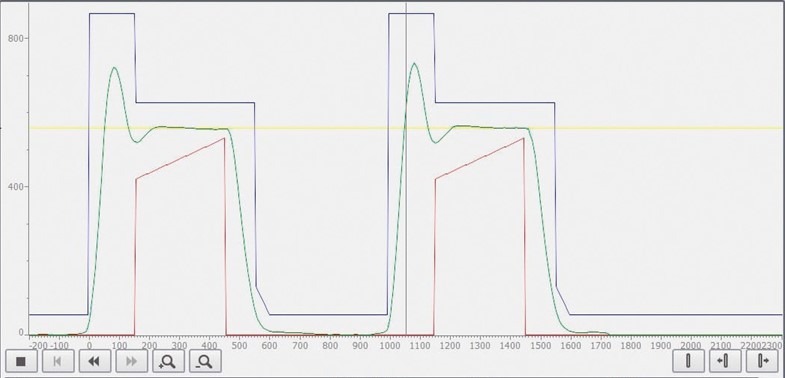

• Testing software can display Time/Pressure graphs and more.
