Sensors for Measuring Force on the Steering Wheel, on the Pedals, on the Levers, on the Handbrake, with a Data Acquisition System (recorder with cables, with software)
Model: DriverSense RDS-01
Handbrake force sensor:
Measuring range – 0-500 N
Repeatability - ±1% RO
Model: HFS-500

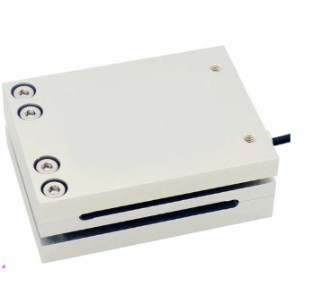

Pedal force sensor:
Measuring range – 0-1 kN
Nonlinearity - 0.3% RO
Model: PFS-1000

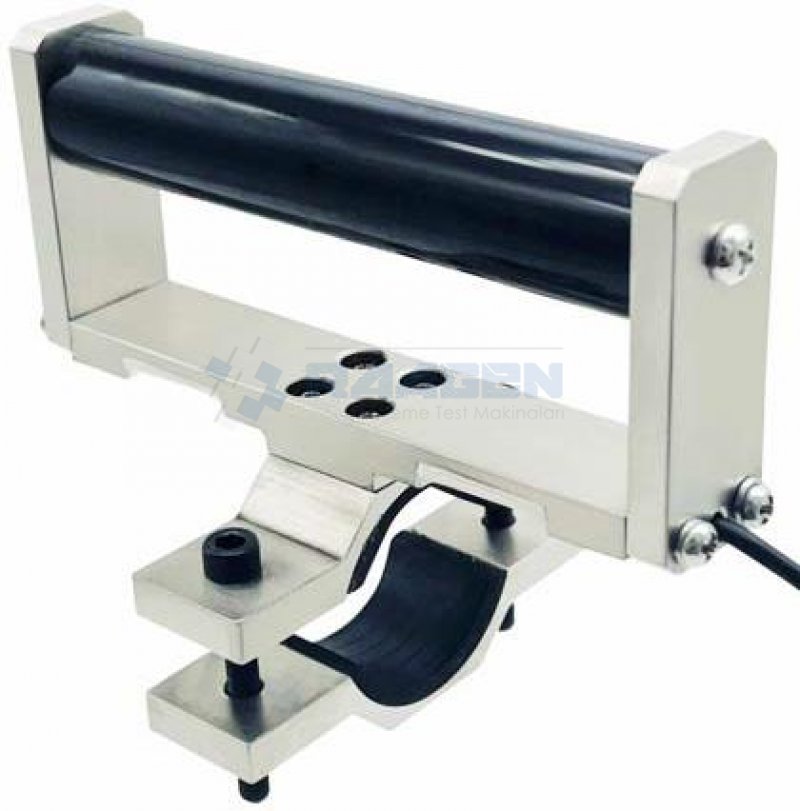

Shift Lever Force Sensor:
Measuring range – 0-200 N for Fx and Fy
Nonlinearity - 0.5% RO
Model: SLFS-200

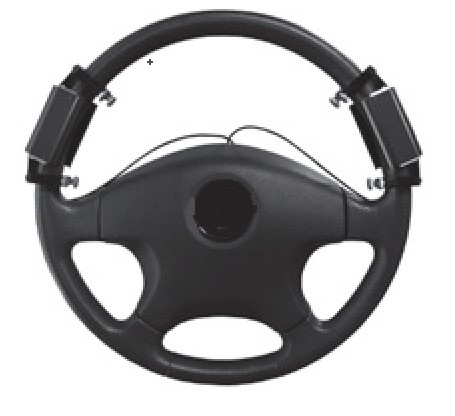

Grip-Design Steering Force Transducer:
Measuring range - ±250 N
Nonlinearity - ±1% RO
Model: SFT-250
Universal recorder (data acquisition system) maximum 8 channels, 1 slot with:
Model: R-DAS-8-1
Dimension:
Strain (sensor, transducer), Voltage Thermocouple Impulse (F/V), Piezoelectric acceleration (built-in amplifier), CANGPS signals
Sensors will have a calibration certificate issued by a metrological service accredited according to ISO/IEC 17025:2017, including measurement uncertainty and information about the uncertainty, valid for one year from the date of commissioning. Institutions or organizations issuing calibration certificates must have traceability according to national standards.
