EU 2015/208 Compliant Test Bench - Coupling Strength Verification

Model: RTB-500-SP1

Ensure Coupling Safety: EU 2015/208 Compliant Test Bench for Mechanical Connection Strength

This robust test bench is specifically designed to verify the mechanical strength of coupling devices according to the requirements outlined in Delegated Regulation (EU) 2015/208. Featuring a powerful hydraulic system, high-precision sensors, and advanced data acquisition software, this solution guarantees reliable and efficient testing procedures.

Compliance & Efficiency:

EU 2015/208 Compliance: Designed to meet the rigorous testing standards for coupling devices as mandated by EU regulations.

Accurate Measurements: High-accuracy sensors ensure precise recording of applied forces and movements during testing.

Versatile Testing Capabilities: Handles a wide range of coupling types and sizes.

Streamlined Data Acquisition: User-friendly software simplifies data recording and analysis.

Technical Specifications:

Test Bench:

• Mounting Plate Dimensions: 8300 x 2300 mm
• Single Hydraulic Cylinder Control
• Vertical Cylinder Mounting Capability
• Computer-Controlled System
• Maximum Horizontal Force (without preload): 500 kN
• Maximum Vertical Force: 90 kN
• Nominal Cylinder Stroke: 250 mm
• Sinusoidal and Square Wave Signal Generation

Measuring Instruments:

• Applied Load Accuracy: ±50 N
• Displacement Accuracy: ±0.01 mm
• Tensile Force Sensor (500 kN):
  • Accuracy Class: 0.05
  • Relative Reproducibility Error: 0.02%

• Strain Gauge Compression Force Sensor (100 kN):
  • Accuracy Class: 0.05
  • Relative Reproducibility Error: 0.02%
• Triangulation Laser Sensor:
  • Measurement Range: 15 mm
  • Resolution: 0.01%

Data Acquisition System:

• User-Friendly Software for Data Recording and Analysis

Calibration and Traceability:

• All measuring devices come with valid calibration certificates traceable to national standards, ensuring measurement accuracy.
• Certificates are issued by a metrological service accredited according to ISO/IEC 17025:2017.

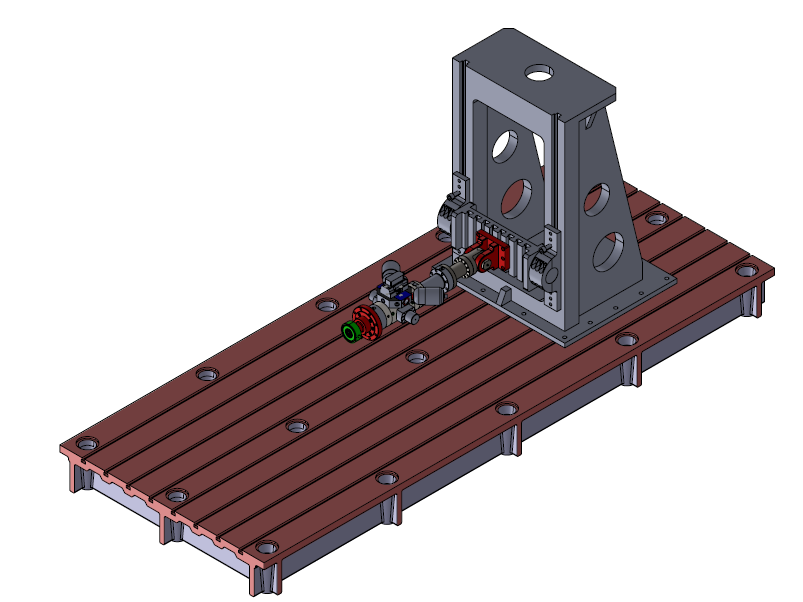

Test Bench

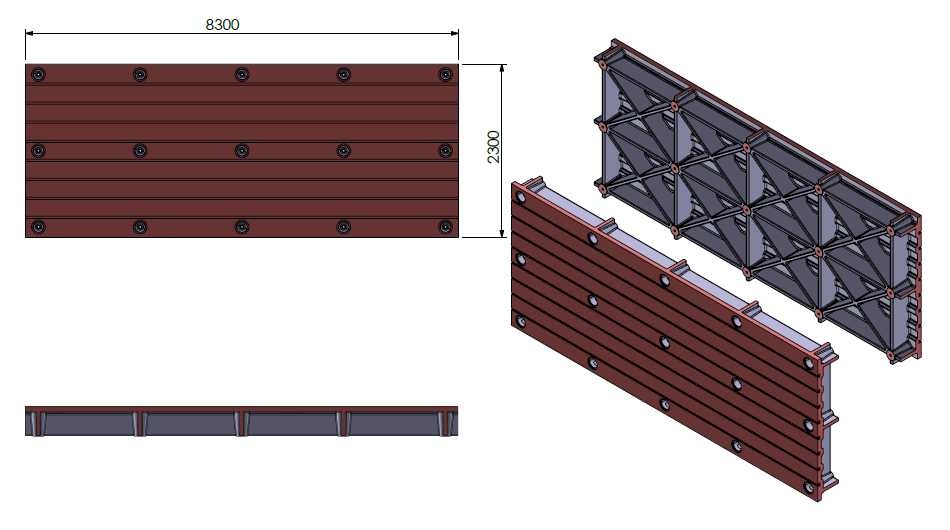

T-Slot Table Plate

Model: TST-SP 2.3x8.3

The test bench mounting plate dimensions: 8300×2300 mm
Material: Cast iron GG25

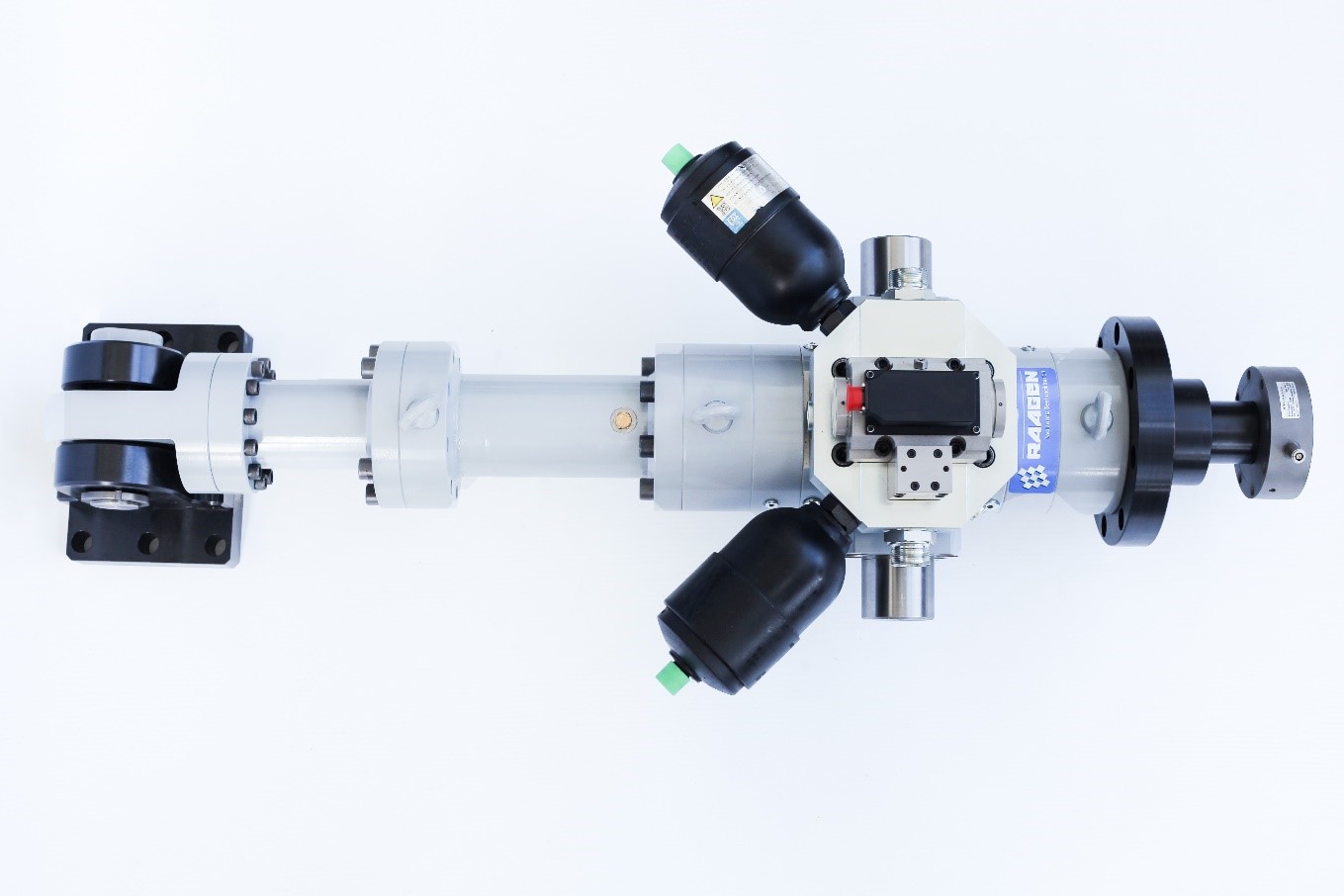

Raagen Hydraulic Actuator (Hydraulic Cylinder)

Angle Plate

Model: TST-AP-500

Maximum horizontal force capacity: 500 kN

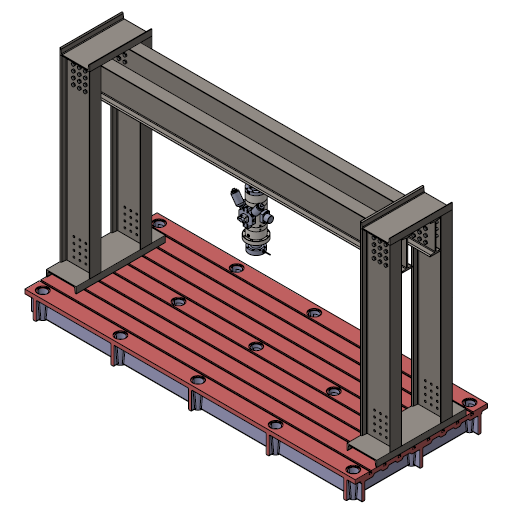

Load Frame

Model: TST-LF-100

Suitable Load Frame for testing the test actuator in vertical position

Maximum vertical force capacity: 100 kN

For more information about Raagen Material Testing Systems, please contact us.
