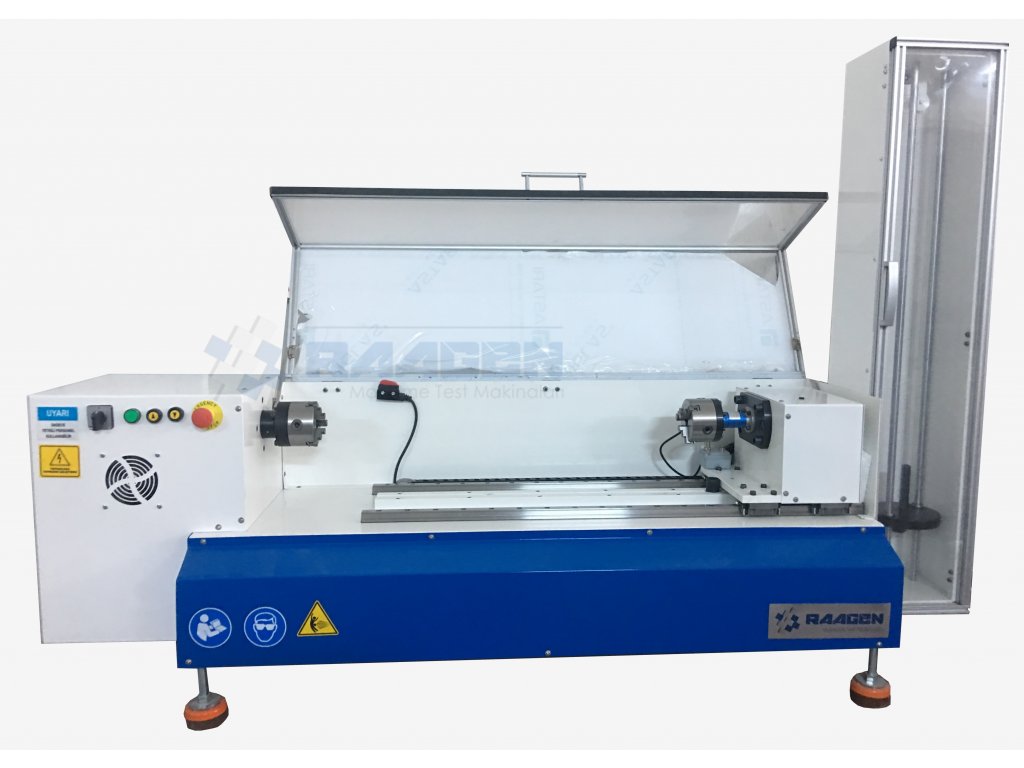

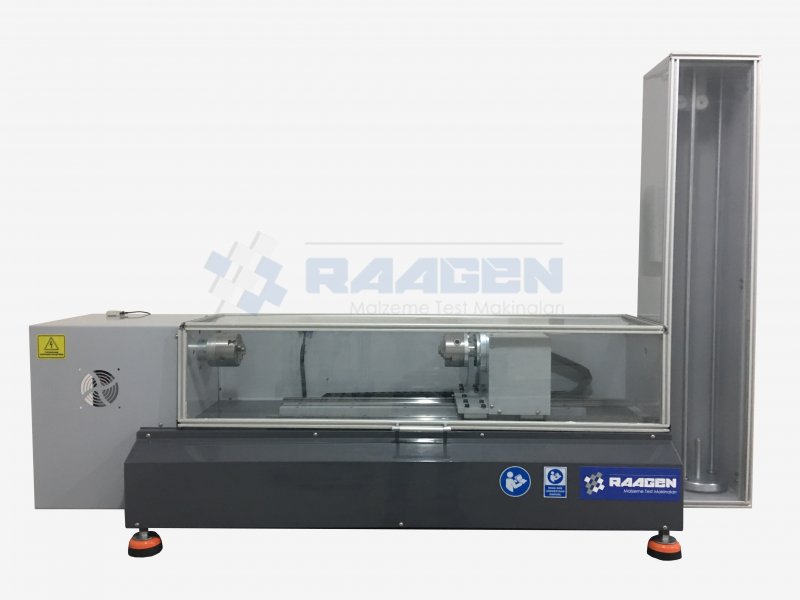

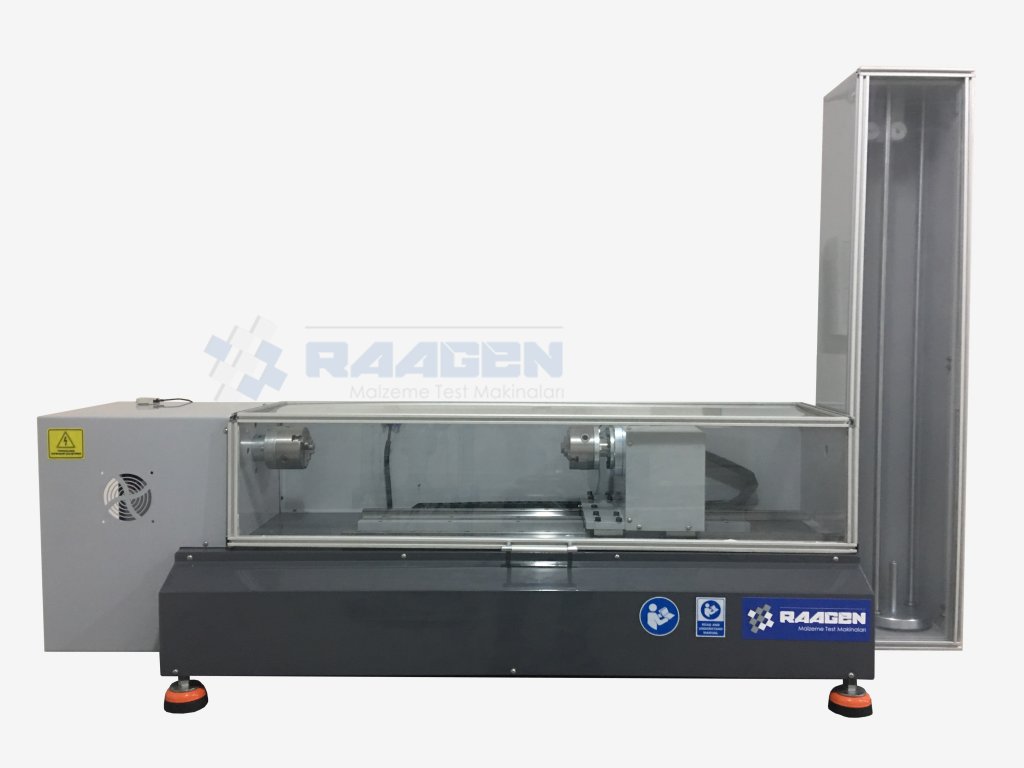

Raagen Electromechanical Torsion Testing Machines

Raagen Electromechanical Torsion Test Equipments are designed to specify the torsional behavior of mettalic and nonmetallic material and  torsion testers can be produced in different torque capacities.

Our torsion testing software initially measures the torque, angle, moment and calculates the maximum torque, torsional strength, torsional yield stregth, breaking angle, breaking torque, number of rotations as a result of the test.

The rotation angles adjustable according to different standards. Electromechanical driving is provided by high precision control unit and closed loop servo control.

The double linear guide design of the Raagen electromechanical torsion testing machine offers high torsional rigidity and low axial friction. Adjustable linear movable guide provide to using wide range of torsion test specimen length.

The Raagen electromechanical torsion tester's torque sensors, available in the 0.2 - 1000 Nm torque range, provide superior accuracy and zeroing capability. In addition, we also produce designs to meet higher torque capacities upon your requests, suitable for your special projects.

Doli T&M torsion testing software provides graphical data plots and can perform a wide variety of calculations on torque and angle data.

Torque cell protection device prevents damage to low capacity torque cells during test setup.

Locked safety guard protects operator from spinning drive by preventing testing while guard is on.

Raagen Electromechanical torsion test machines using fot both ot static and dynamic torsion test applications.

General Specifications

  • Raagen torsion testers are designed for determining of specification the torsional behavior.
  • They could be produced as different torque capacities.
  • Software measures torque, angle, moment initially. As a result, software calculates maximum torque, breaking angle, breaking force, rotation numbers etc.
  • Adjustable crosshead locking system allows crosshead to be free-floating or fixed
  • Torque sensors available from 0.2 - 1000 N-m with 0,5 torque measurement accuracy.
  • Doli EDCi series electronic controller and Doli Test&Motion material testing software are provide precise control and data processing.
  • Over torque protection of software system provides torque cell prevents damage.


Software Capable for:

 Allows real time data/graph plotting,

Allows real time control/change of variables,

Has a sevurity feature such as overvoltage, overtorque, overcurrent limits

Enables user to capture and extract all data in a raw and pdf format,

Allows user to run mixed mode control,

 Fast data transfer of logged information to a PC at a rate of up to10 kHz on all channels,

Capable for manual movement with RMC

Software Capable for applying:

1. Torque controlled Tests

2. Angle controlled Tests

Allows users to code custom calculations all measured channels.



ASTM A938 Torsional Test of Wire

ASTM D1043 Torsion Plastics Test Equipment

ASTM D5279 Thermoset & Thermoplastic Dynamic Torsion Testing Machine

ASTM E2207 Axial-Torsional Fatigue Thin-Walled Tubular Materials Test Equipment

ASTM F383 Static Bend and Torsion Testing of Intramedullary Rods

ASTM F543 Medical Bone Screw Torsion Test Equipment

ISO 6475 Bone Screw Torsion Test Methods | Equipment

ISO 7800 Metal Wire Torsion test

ISO 80369-1 Axial Torsional Luer Connector Test Equipment

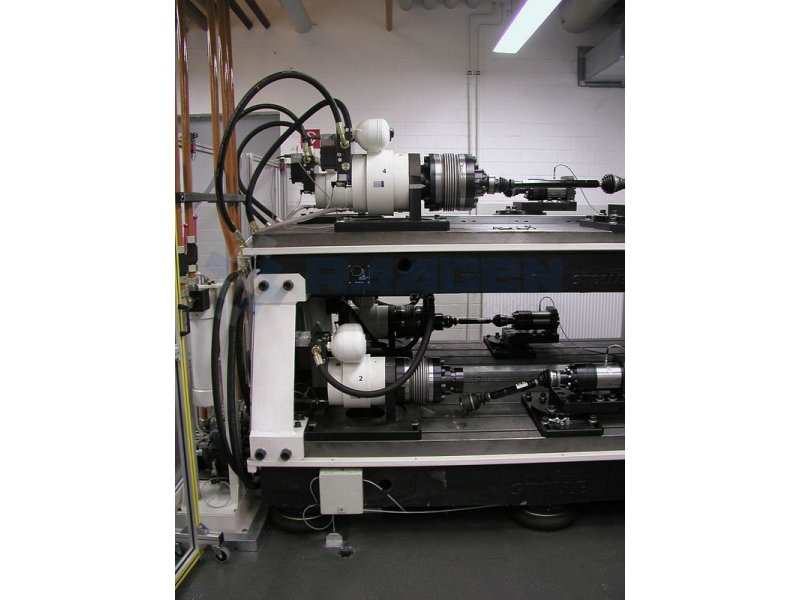

Servo Hydraulic Fatigue Test Machines Grips And Test Fixtures


Raagen has a big engineer team for designin of different test fixtures according     to various test     standards.This team analyse the customer's exact requirement  of required tests. They offer   correct fixture types and dimensions     for customer.Raagen offers different kind of tensile test   fixtures, compression  test plates, flexural and bending test apparatus, shear test fixtures, peeling   tests fixtures, eccentric rollers, chucks, puncture test fixtures, specimen cutters and cutting dies. See more...





Extensometers for Strain Measurement

Raagen offers all type of extensometers to use with electromechanical  test  machines to able to strain measurement of mechanical tests.

 We are supplying of tensile test extensometers, clip on extensometers, compression test deflection gauges, transversal extensometers, video   extensometers, laser extensometers, long travel extensometers and automatic extensometers. See more...

High Temperature Furnaces

Raagen develops, manufactures and supplies high temperature test furnaces for quality assessment in material testing under high  temperature (HT).

Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials.  The furnaces can using with Raagen Electromechanical Test Machines to determine material characterisation of elevated temperatures. See more...







Environmental Chambers for Universal Testing Machines



Raagen environmental test chambers provides extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions. A full range of complementary grips, pullrods and extensometers are available for using inside of environmental test cabinets.

Raagen makes high or low temperature testing is made possible by integrate an climalitical chamber to a universal testing machine.

See more...
