Raagen Servohydraulic Dynamic Torsion Test Systems easily meet the difficult demands of both static and dynamic torsion testing requirements with a precision-aligned, high-rigidity double-column body. It has a sliding system that can be adjusted according to the sample shape and size. Depending on the test application, vertically or horizontally positioned bodies can be used.

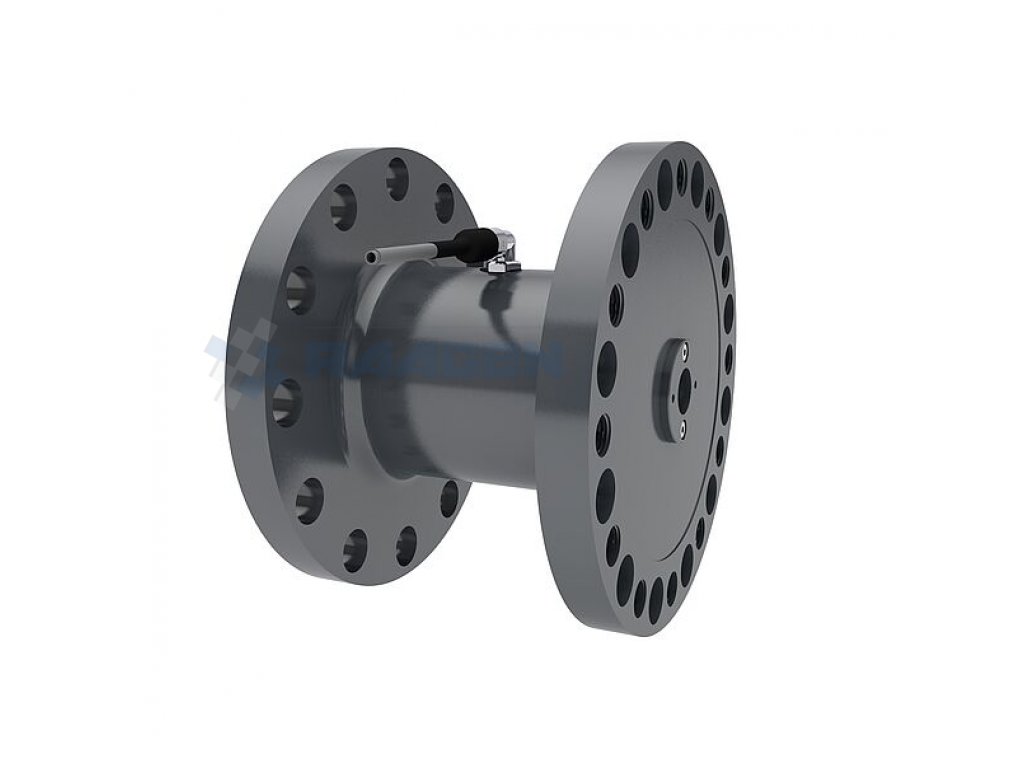

EDC series DOLI digital controllers and specially developed torque sensors for dynamic testing (fatigue rated torque sensor) enable Raagen to offer fully integrated solutions to meet the most demanding applications.

DOLI Test&Motion dynamic test software provides full system control over a computer, thanks to its features such as performing dynamic fatigue tests in different waveforms, calibration, limit setting, displaying and recording instant sensor data, and reporting.

The software automatically recognizes the connected sensors and the calibration values ​​are kept on the plates on the sensor. Thus, the calibration values ​​are not lost.

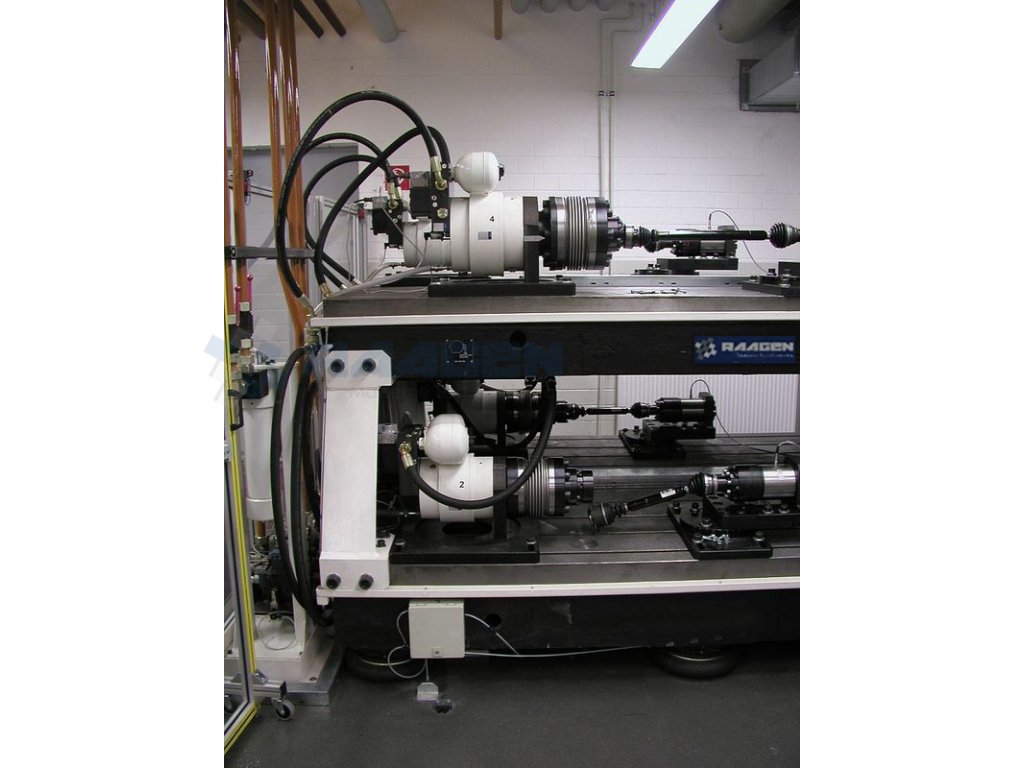

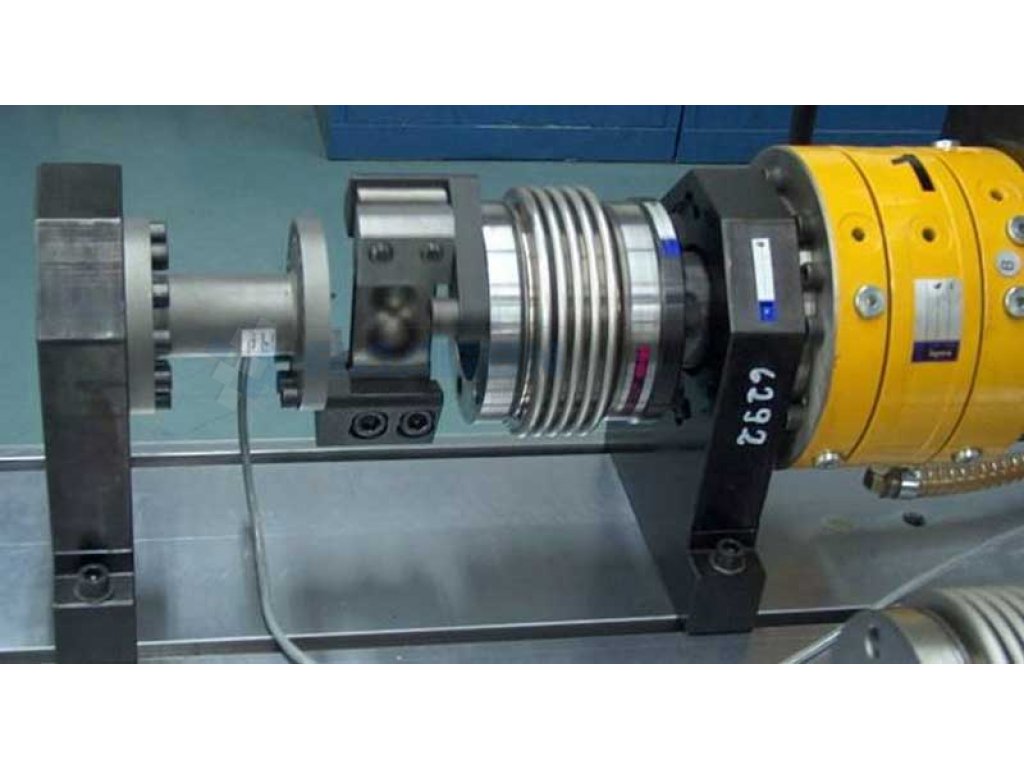

Raagen servo hydraulic dynamic torsion test machines are suitable for high frequency and high cycle torsional fatigue testing. It performs dynamic torsion tests by means of a servo hydraulic rotary actuator. Sensitive servo valves are used in the system. It can be produced in capacities up to 50,000 Nm torque capacity thanks to its servo hydraulic drive.

It can be produced in different capacity and frequency ranges according to user needs and test requirements.

Raagen dynamic torsion testing machines are generally used to determine the fatigue life of axles, timing belts, wheels, wheel coupling shafts and shafts.

Contact us now to get more detailed information about Raagen Servohydraulic Torsion Fatigue Testing Machines or to request a quote.





Servo hydraulic torsion testing machines have variable configuration options. To able to determine required technical specifications please contact with us.



ASTM A938 Torsional Test of Wire

ASTM D1043 Torsion Plastics Test Equipment

ASTM D5279 Thermoset & Thermoplastic Dynamic Torsion Testing Machine

ASTM E2207 Axial-Torsional Fatigue Thin-Walled Tubular Materials Test Equipment

ASTM F383 Static Bend and Torsion Testing of Intramedullary Rods

ASTM F543 Medical Bone Screw Torsion Test Equipment

ISO 6475 Bone Screw Torsion Test Methods | Equipment

ISO 7800 Metal Wire Torsion test

ISO 80369-1 Axial Torsional Luer Connector Test Equipment

STP 216, StVZO, ECE R64, VIA, JWL, JASO, SAE, ISO, INMETRO, EUWA, AK-L08





Servo Hydraulic Fatigue Test Machines Grips And Test Fixtures


Raagen has a big engineer team for designin of different test fixtures according     to various test     standards.This team analyse the customer's exact requirement  of required tests. They offer   correct fixture types and dimensions     for customer.Raagen offers different kind of tensile test   fixtures, compression  test plates, flexural and bending test apparatus, shear test fixtures, peeling   tests fixtures, eccentric rollers, chucks, puncture test fixtures, specimen cutters and cutting dies. See more...





Extensometers for Strain Measurement

Raagen offers all type of extensometers to use with electromechanical  test  machines to able to strain measurement of mechanical tests.

 We are supplying of tensile test extensometers, clip on extensometers, compression test deflection gauges, transversal extensometers, video   extensometers, laser extensometers, long travel extensometers and automatic extensometers. See more...

High Temperature Furnaces

Raagen develops, manufactures and supplies high temperature test furnaces for quality assessment in material testing under high  temperature (HT).

Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials.  The furnaces can using with Raagen Electromechanical Test Machines to determine material characterisation of elevated temperatures. See more...







Environmental Chambers for Universal Testing Machines



Raagen environmental test chambers provides extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions. A full range of complementary grips, pullrods and extensometers are available for using inside of environmental test cabinets.

Raagen makes high or low temperature testing is made possible by integrate an climalitical chamber to a universal testing machine.

See more...
