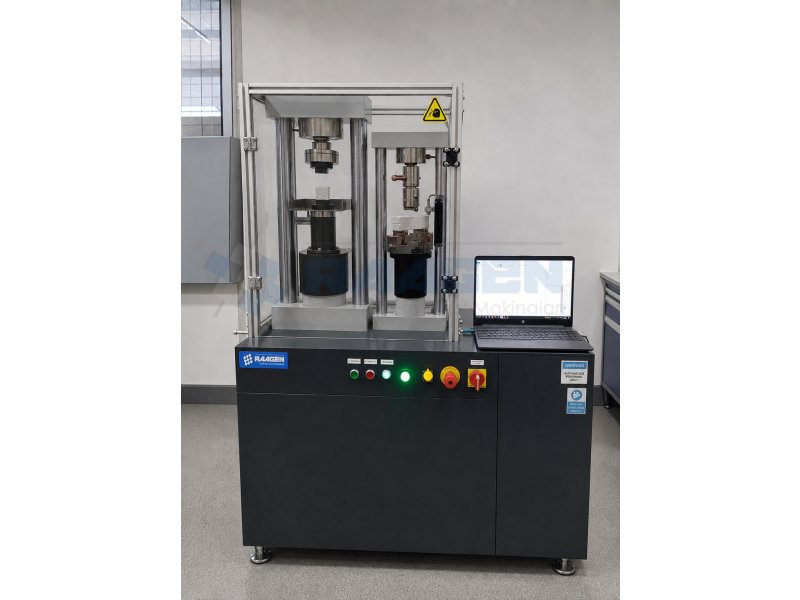

Raagen Cement Compression and Flexural Test Machine

General Features

Compression Test Capacity: 200 kN
Measuring range: 2,5 kN - 200 kN
Flexural test capacity: 20 kN
Measuring range: 0,5 kN to 20 kN
Class 1 according to ISO 7500-1
40x40x40mm Pressure Test Fixture is included
40x40x160mm Flexural Test Fixture is included

Loading Speeds:

Tensile Test Speed: 250±50 N/s
Compression Test Speed: 2400 N/sn
Flexural Test Speed: 50 N/sn

Delivered with cement testing software
The software language is English
Loading speed during testing can be adjusted according to EN or ASTM standards.
Report pdf and txt format
Ethernet connection via PC
Able to report Load-Time, Strength-Time graphs of tests
If the load safety limit is exceeded for any reason, the device automatically returns to the starting point.
Once the specimen is deformed, the piston movement stops and returns to the starting point.
Hydraulic Unit is included.
CE Certificate
Power: 220-240V 1ph 50z 750W
